DIR911T User Guide
77
Tip
Ring
Sleve

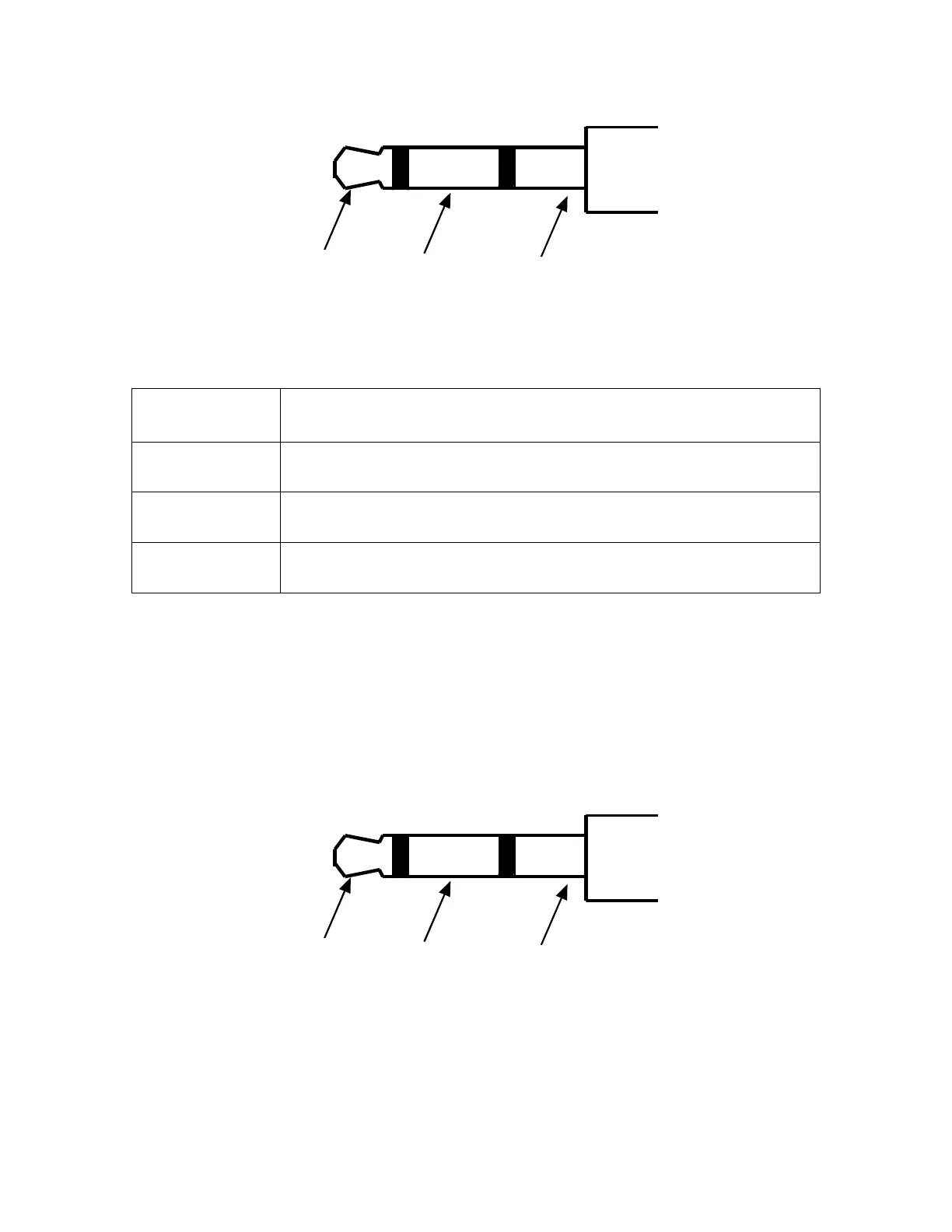

Figure 62: Front Panel Monitor Connector Pin Diagram
Pin Description
TIP Left
RING Right
SLEVE Ground
Table 11: Front Panel Monitor Connector Pin Description
Re-Record Output Connector
There is a 3.5mm Tip-Ring-Sleeve (TRS) connector that provides the re-record output
signal. This connector is used to connect the unit to standard audio recording devices that
have industry standard line level inputs. The mating connector for this jack is shown in
Figure #63 and the pin description is shown in Table #12.
Tip
Ring
Sleve
Figure 63: Front Panel Re-Record Connector Pin Diagram
