Eventide DIR911t - Monitor Output Connector; Figure 61: Front Panel USB B Connector Pin Diagram; Table 10: Front Panel USB B Connector Pin Description

DIR911T User Guide
76
3 4
2
1

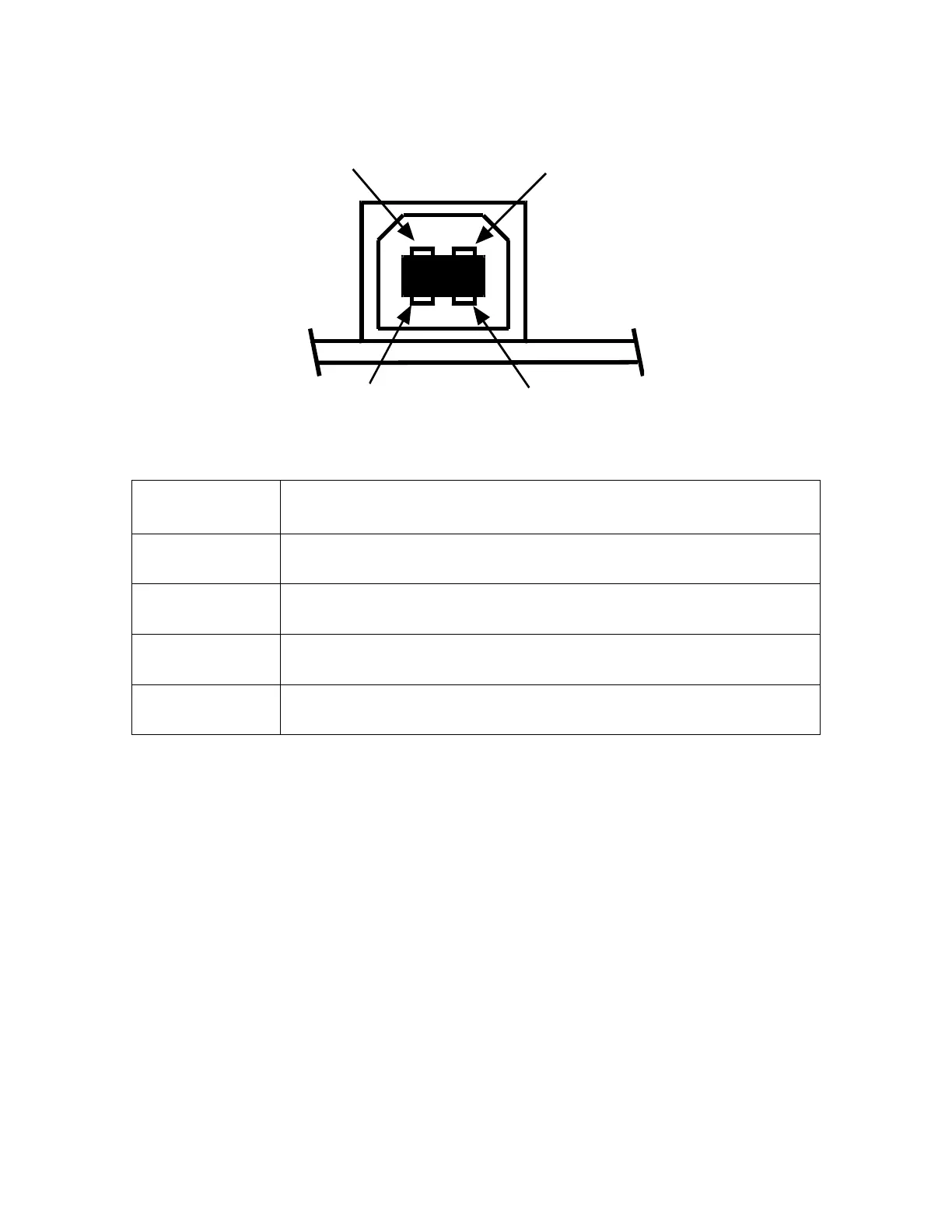

Figure 61: Front Panel USB B Connector Pin Diagram
Pin Description
1 Vbus
2 D-
3 D+
4 Ground
Table 10: Front Panel USB B Connector Pin Description
Monitor Output Connector
There is a 3.5mm Tip-Ring-Sleeve (TRS) connector that provides the monitor output
signal. This connector is used to connect the unit to standard audio recording devices that
have industry standard line level inputs. The mating connector for this jack is shown in
Figure #62 and the pin description is shown in Table #11.
