EVINRUDE ICON REMOTE CONTROL SYSTEM
ICON COMPONENT SERVICING

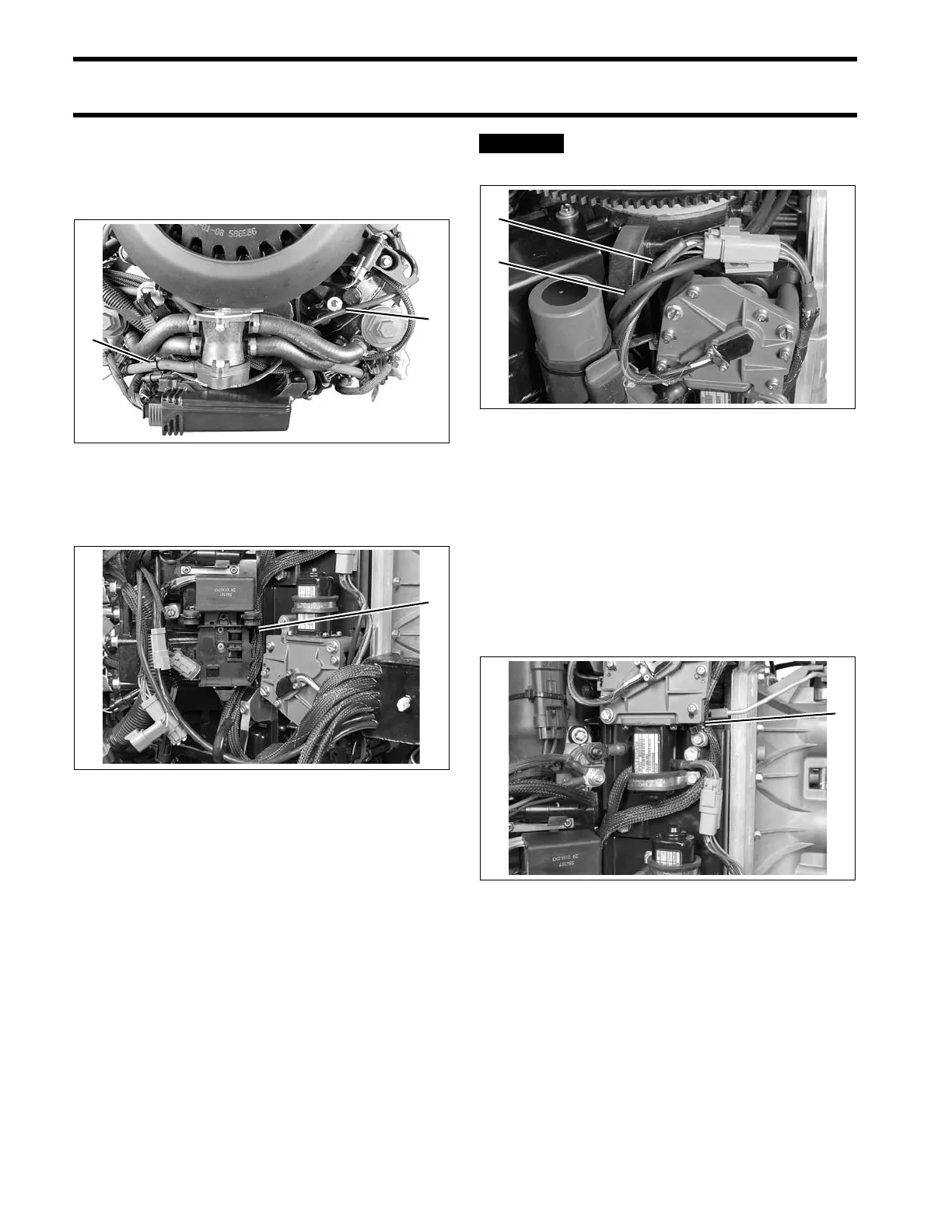

Continue harness routing under pressure relief
valve hoses to EMM connector. Clip connector to
fuel rail. Make sure harness is not strained and
does not rub against EMM mounting boss.
Route ESM to actuator harnesses between actua-
tor plate and engine electrical bracket as shown.
Route the throttle actuator harness behind and
over the oil recirculation hose as shown. Connect
to harness from ESM and attach to clip on mount-
ing plate.
Make sure the oil recirculation hose
is not pinched during assembly.
Secure ESM to throttle actuator harness with tie
strap, P/N 320107.
Route ESM to shift actuator harness behind throt-
tle actuator and over throttle actuator harness.
Attach to clip on mounting plate.
Install clamp over actuator motor and secure to
plate with screw. Tighten screw to a torque of 60 to
84 in. lbs. (7 to 9.5 N·m).
1. CANbus harness
2. Connector clip
007502
1. ESM to actuator harnesses 007496
1. Harness
2. Hose
007497
1. Throttle harness tie strap 007498
