EVINRUDE ICON REMOTE CONTROL SYSTEM
ICON COMPONENT SERVICING
10
Secure shift actuator harness with tie strap,
P/N 317893.
Route ESM power supply harness behind trim
relay harness. Route negative (–) terminal to bat-
tery ground stud and positive (+) terminal to sole-
noid.
Install ESM ground, star washer, battery cable,
and nut on main ground stud. Tighten to a torque
of 60 to 84 in. lbs. (7 to 9.5 N·m).
Install copper crush washer over ESM positive
ring terminal. Then, install star washer, battery
cable, and nut. Tighten nut to a torque of 60 to 84
in. lbs (7 to 9.5 N·m).
Connect ESM harness to engine harness key
switch and trim/tilt connectors.
Secure connectors in bracket as shown and install
connector cover.

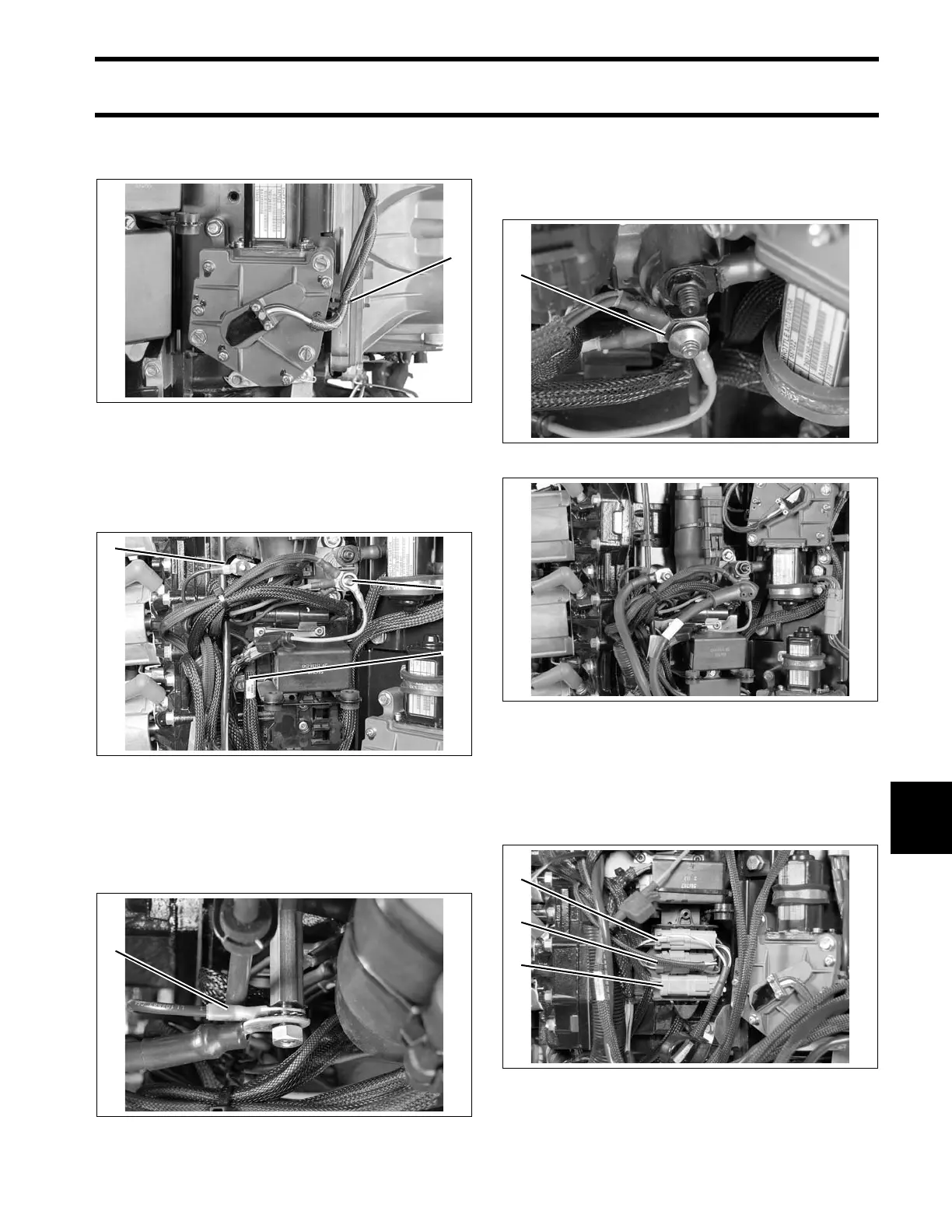

1. Shift harness tie strap 008514
1. ESM Power supply harness
2. Ground stud
3. Solenoid
007499
1. ESM Ground 007507
1. Copper washer 007508
007526
1. Key switch connector
2. Trim/tilt connector
3. SystemCheck connector
008507
