EVINRUDE ICON REMOTE CONTROL SYSTEM
ICON SYSTEM SETTINGS
linkage. Evinrude Diagnostics reports when the
process is complete.

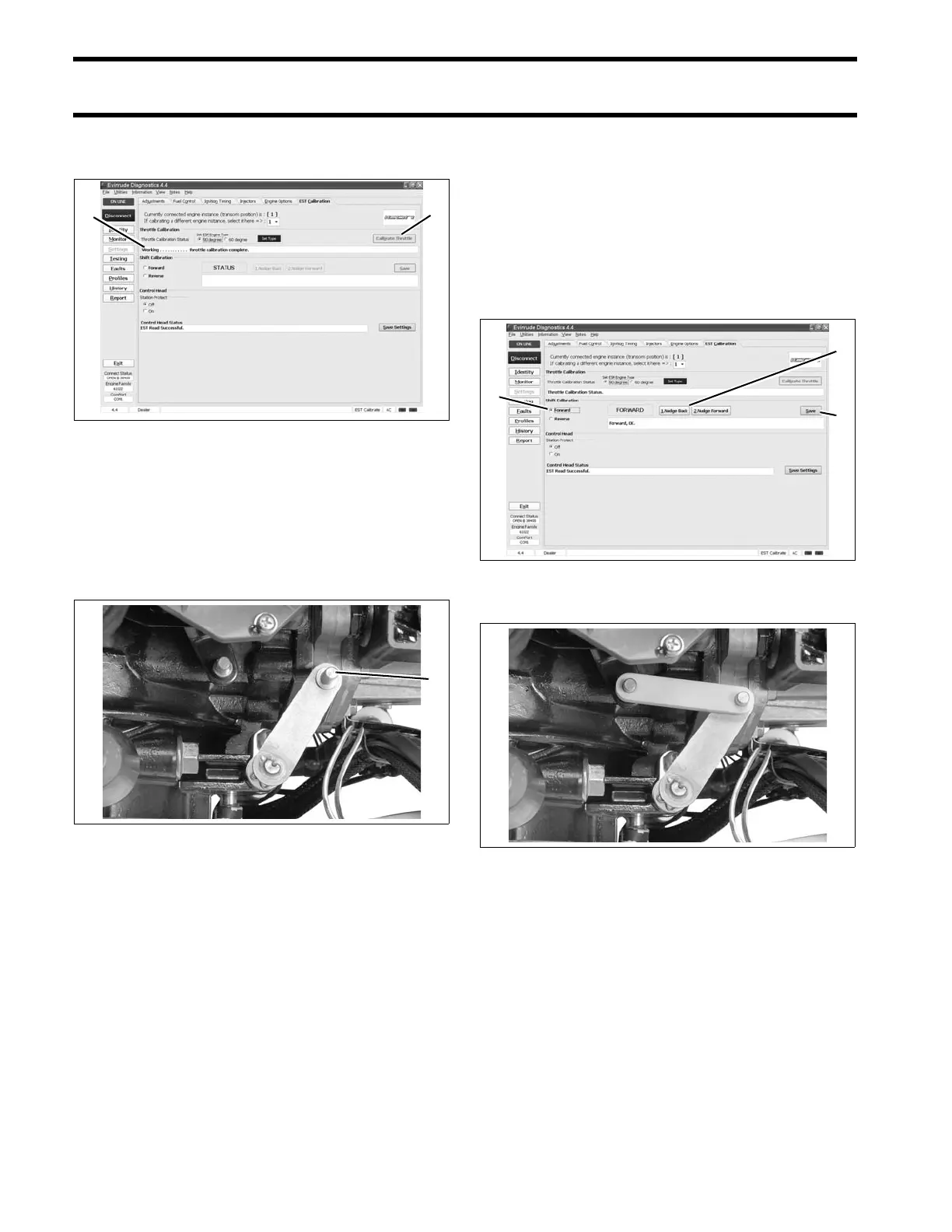

Shift Actuator Stroke
To set forward gear shift stroke:
• With the shift link disconnected, rotate the pro-
peller and manually shift the outboard into for-
ward gear with the shift lever.
IMPORTANT: Make sure the gear is fully
engaged and the lever is all the way forward.
• Click the Forward button under Shift Calibration
on the EST Calibration screen. The actuator
arm will move forward.
• Use the Nudge buttons to move the actuator
arm forward or backward until the shift link
aligns with the actuator arm and shift lever pins.
• When the link and pins are exactly aligned,
install the link and click the Save button. The
actuator will move to the neutral position.
To set reverse gear shift stroke:
• Remove shift link.
1. Calibrate Throttle button
2. Process complete message
008133
1. Shift lever in forward 008510
1. Forward calibration button
2. Nudge buttons
3. Save button
008134
008511
