EVINRUDE ICON REMOTE CONTROL SYSTEM
ICON SYSTEM SETTINGS
10

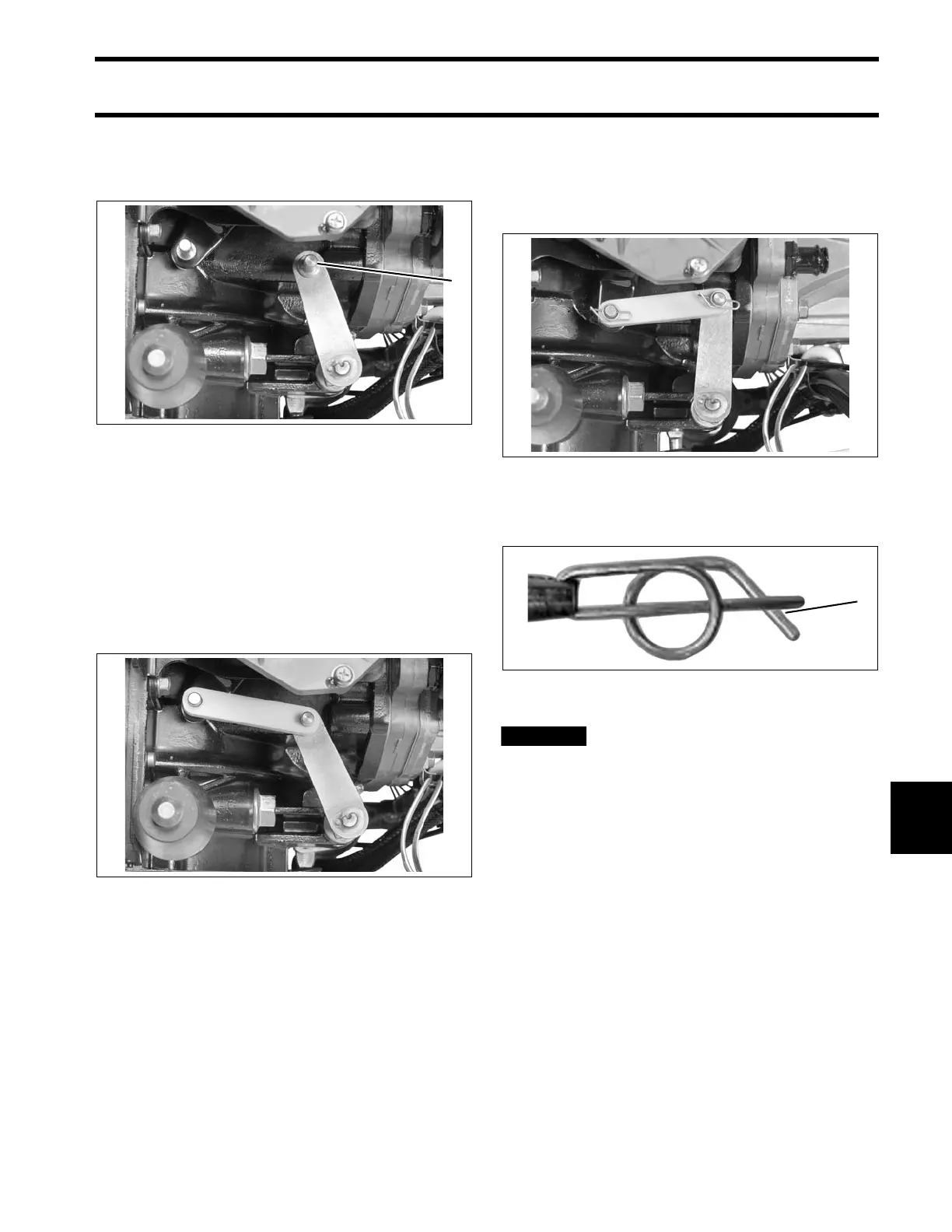

• With the shift link disconnected, rotate the pro-
peller and manually shift the outboard into
reverse gear with the shift lever.
IMPORTANT: Make sure the gear is fully
engaged and the lever is all the way to the rear.
• Click the Reverse button under Shift Calibration
on the EST Calibration screen. The actuator
arm will move backward. Use the Nudge but-
tons to align the shift link.
• When the link and pins are exactly aligned,
install the link and click the Save button. The
actuator will move to the neutral position.
After forward and reverse strokes have been cali-
brated, the ESM calculates neutral position.
Install the shift link and secure with retainer clips
and washers.
Lock the retainers by moving the angled section
behind the straight section.
When installation is complete, shift
the outboard with control (while rotating pro-
peller). Rotate the propeller shaft back and
forth to ensure the face of the clutch dog con-
tacts the gear in both forward and reverse.
With the outboard in neutral, make sure the
propeller shaft turns freely with no contact
between the clutch dog and gears.
1. Shift lever in reverse 008512
008513
008509
Locked Retainer Clip
1. Angled section behind straight section
DP0817a
