Building a Preset
Only elements of the preset highlighted (given focus) are saved as a preset. <Ctrl+A>
highlights all elements within DSP Configurator.
To build a preset, highlight the desired DSP Configurator elements (gain/processor blocks,
mix-points) using standard Windows keyboard and mouse actions as follows:
1. Click on the desired block to select a single block,
2. <Ctrl + click> to select multiple blocks that are not adjacent,
3. <Shift/hold + click> on the first block and click on the last block in either a vertical
column or horizontal row to select multiple blocks, and
4. Click and drag a selection rectangle to select multiple adjacent blocks in either the
vertical or horizontal direction.
5. Select Tools > Presets > Mark All Items or press <Ctrl + A>. This marks all
elements within DSP Configurator, which saves a “full” preset,
6. To save the selection see Save Preset below.
Save Preset
A preset is saved in either Emulate mode or Live mode.
Saving a preset in Emulate mode stores that preset in the currently open file. The
DSPConfigurator file is saved to disk using File menu > Save (recommended), and
pushed to the device after a connection is established. This differs from Live mode
where the created preset is saved in real-time to the device and becomes part of the
configuration file.
To save a preset:
1. Highlight the desired preset block(s) by using click, <Ctrl + click>, <shift+click> or
drag around the desired blocks.

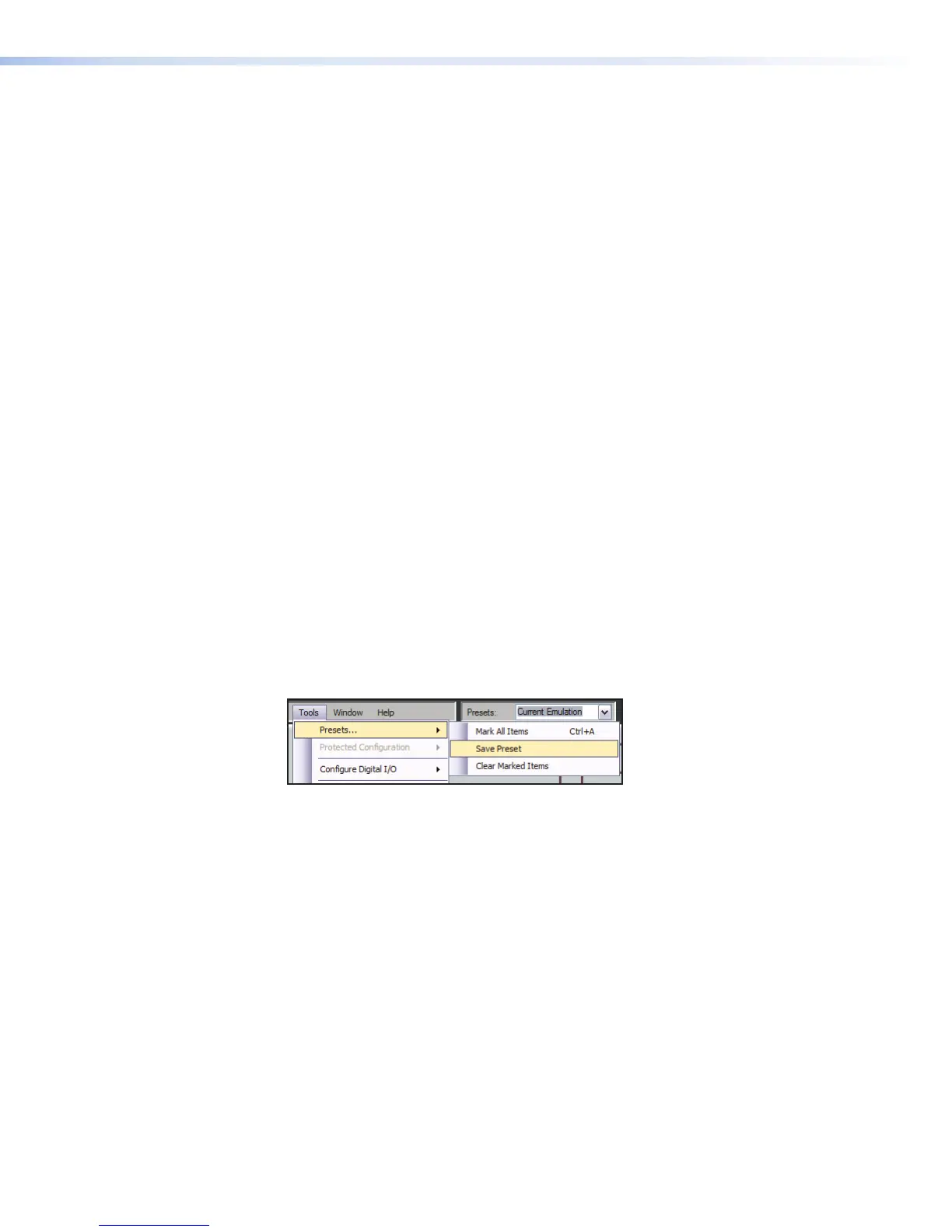

2. Select Tools > Presets > Save Preset.
DMP128 • Software Control 94
