Configuring a Group Master
To configure a group:
1. Click Tools > Configure Groups (see figure 52 on the previous page) to open the
Configure Groups dialog.
or click View > Group Controls > Add a Group.
2. Click the Select Group drop-down list (see figure 53). The list defaults to the first
empty group. Select an empty group, or an existing group to overwrite.

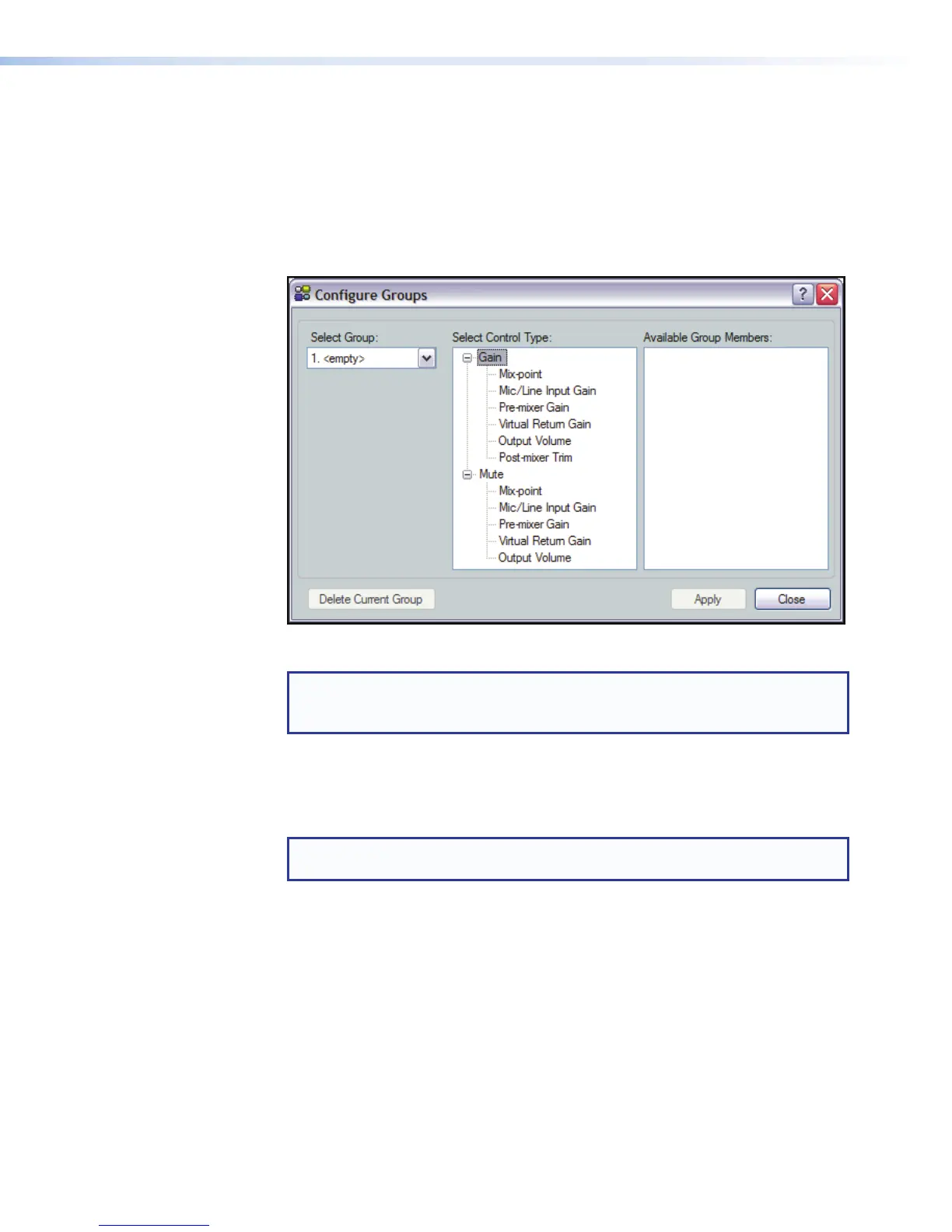

Figure 53. Configure Groups, Add Group Dialog Box
NOTE: <empty> groups have no group members assigned. Numbered groups
(such as <Group #1>) have controls assigned that may be overwritten if
selected.
3. In the Select Control Type panel, expand the tree for the type of control,
Gain or Mute, then select the desired control type. When a selection is made, the
Available Group Members section populates with all possible members for the
selected control type.
NOTE: Potential group members in step 4 that are already assigned to a
different group are displayed in blue.
4. In the Available Group Members section, click the checkbox to make appropriate
selections. When a plus sign (+) exists, click to expand the tree and select individual
controls. Up to 16 group members can be added.
5. Click Apply to create or configure the group.
6. Repeat steps 2 through 5 to create or configure up to 32 groups.
7. Click Close to exit the configure groups dialog.
DMP128 • Software Control 84
