DSP Configurator Windows Menus
Keyboard Navigation
DSP Configurator is fully navigable using the computer keyboard. Some keyboard
navigation behavior matches Windows standards, while other behaviors are specific to
DSP Configurator.
<Tab> jumps to the various sections outlined in red in figure 61, below. When the program
starts, the cursor defaults to the Emulate button (
a
). Press <Tab> to jumps focus to the
next area, then the next, in order.
Within the sections, the <navigation arrows> move one processor block or mix-point right,
left, up, or down within the section.
Virtual Returns
Expansion Returns
Exp. Inputs 1 - 8
Exp. Inputs 9 - 16
Outputs
Inputs
mn ol
r
k
p
q
d
f
ce ba
g
h
i
j

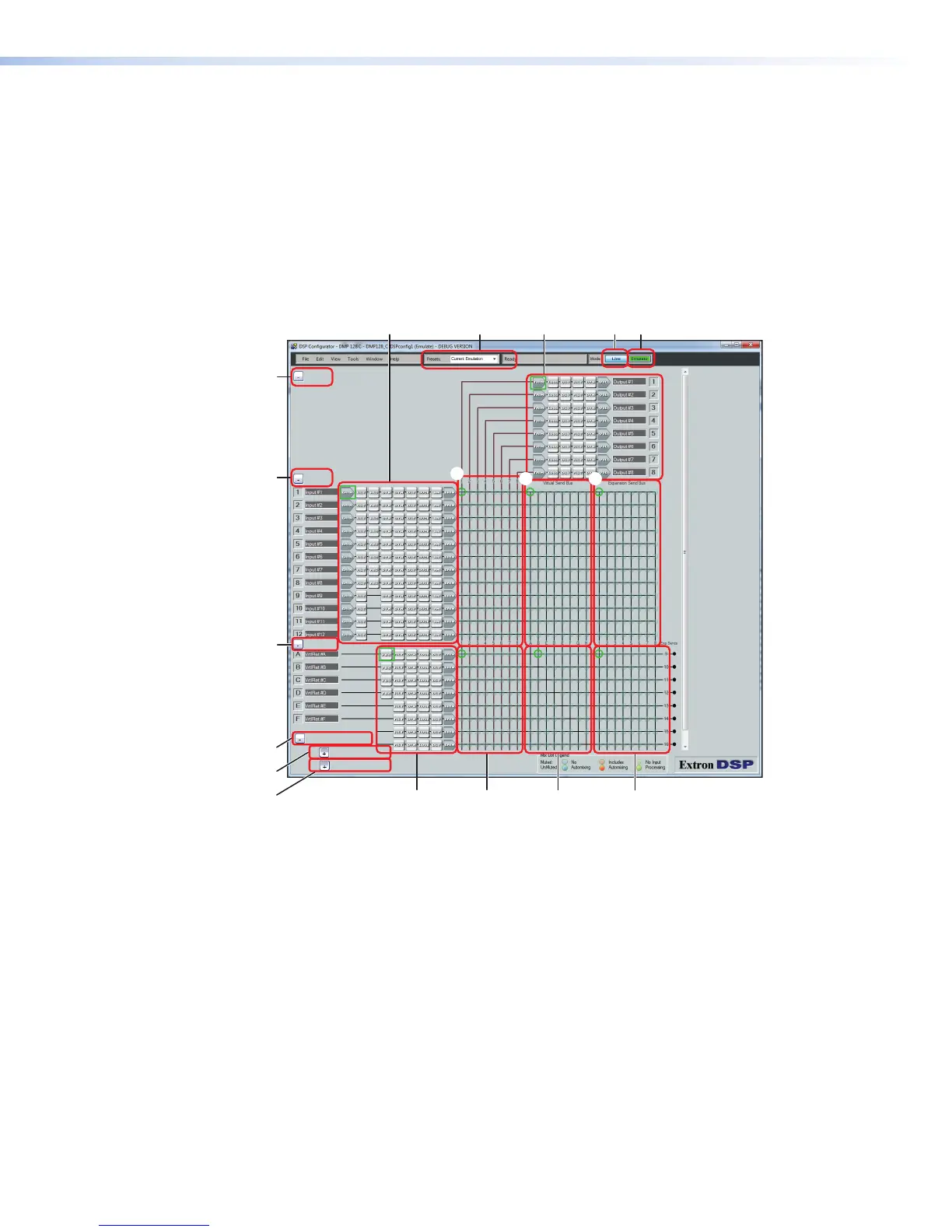

Figure 61. DSP Configurator Program
Standard Windows Navigation
The keyboard keys navigate and function as follows:
• Tab key —
Sequentially jump among major segments of the DSP Configurator program. From the
Emulate mode button (
a
), sequential jumps are in the following order:
b
Live mode
k
Virtual Returns minimize button
c
Presets (Down arrow can select presets)
l
Virtual Return signal path (defaults to FBS)
d
Outputs minimize button
m
Virtual Return bus mix-points
e
Output signal path (defaults to trim)
n
Virtual Return bus to Virtual sends
f
Input minimize button
o
Virtual Return bus to EXP sends
g
Input signal processing (defaults to gain)
p
EXP Returns bus minimize button
h
Main mix-points
q
EXP Inputs bus 1-8 maximize button
i
Virtual Send bus mix-points
r
EXP Inputs bus 9-16 maximize button
j
Expansion Send bus mix-points
DMP128 • Software Control 97
