Rename an Input or Output
To simplify setup and operation of large matrix systems, rename the input (receiver) and
output (transmitter) lines to a label indicating the input a source device is connected to or
the output a receiver is connected to.
2
4
3

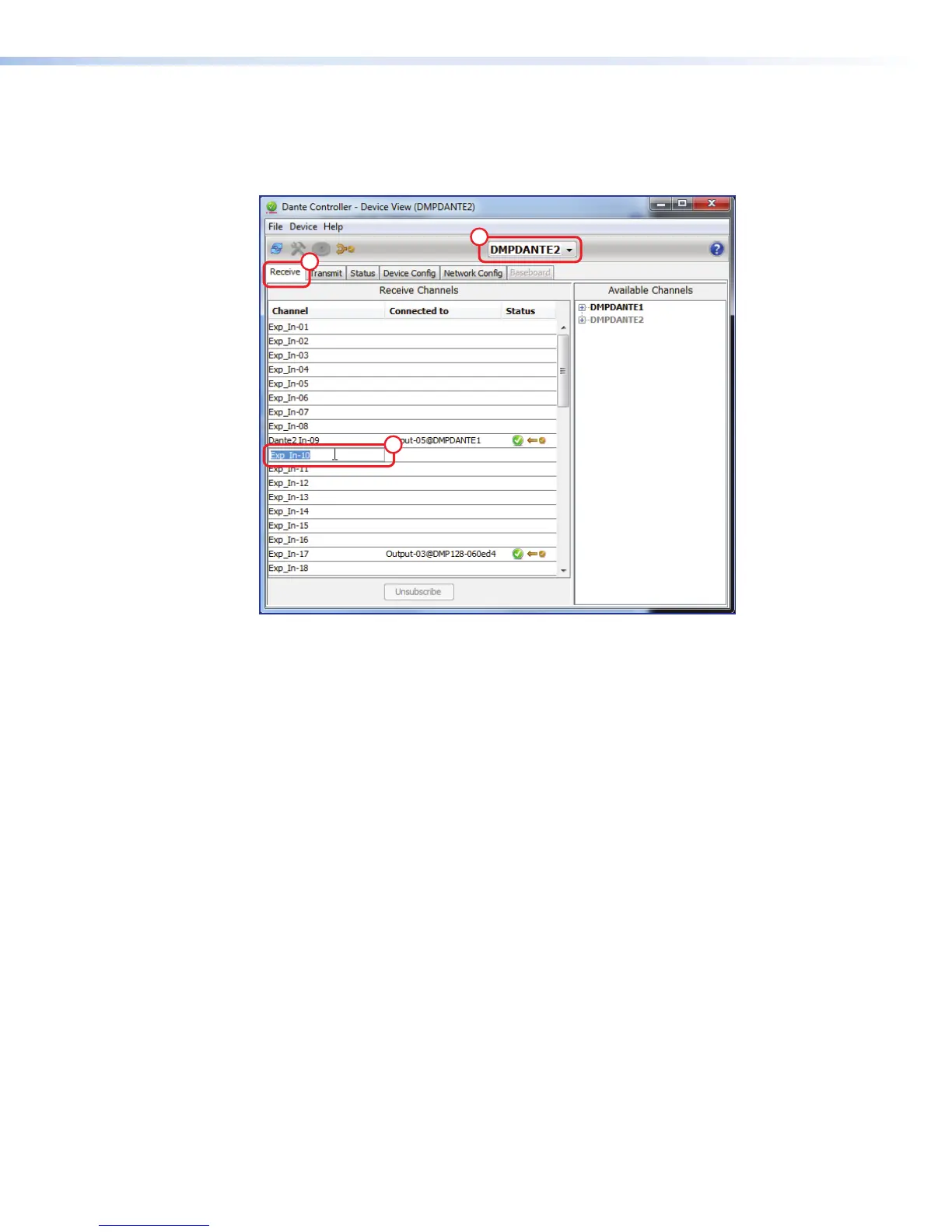

Figure 75. Dante Controller - Rename Inputs and Outputs
To rename an input:
1. From the menu, select Device>Device View or use <Ctrl+D>.
2. From the drop-down list in the upper center of the screen, select the device.
3. From the Device View screen, select the Receive tab.
4. Click inside the input text box to rename. A cursor appears.
5. Type the new name (up to 30 characters) using any combination of letters, numbers,
and special characters.
6. Press <Enter>, or click in another input text box.
7. Repeat steps 4 to 6 for each input line.
8. When all Inputs have been renamed, close the dialog box.
To rename an output:
1. Follow steps 1 and 2 above.
2. From Device View, select the Transmit tab.
3. The transmit tab has an extra column for naming the outputs. Click inside the
Channel Label text box to rename an output. A cursor appears.
4. Type a new name (up to 30 characters) using any combination of letters, numbers,
and special characters.
5. Press <Enter> or click in another output Channel Label field.
6. Repeat steps 3 to 5 for each input to be renamed.
7. When all outputs have been renamed, close the dialog box.
DMP128 • Software Control 121
