Extron electronics DMP 128 User Manual

Expansion Outputs Mix Matrix
The DSP architecture contains a third mix matrix that supports connection and control of
a second DMP128 using the included shielded CAT 6 cable. The output connects the
mic/line inputs and virtual returns to the Expansion Outputs. The DSPConfigurator main
screen provides all necessary control of the mix matrix.
Expansion Outputs
Mix Matrix
Inputs to
EXP Sends
(1-8)
Virtual Returns
to
EXP Sends
(9-16 only)
Exp Inputs
to
Outputs
EXP Inputs
to
Virtual Sends

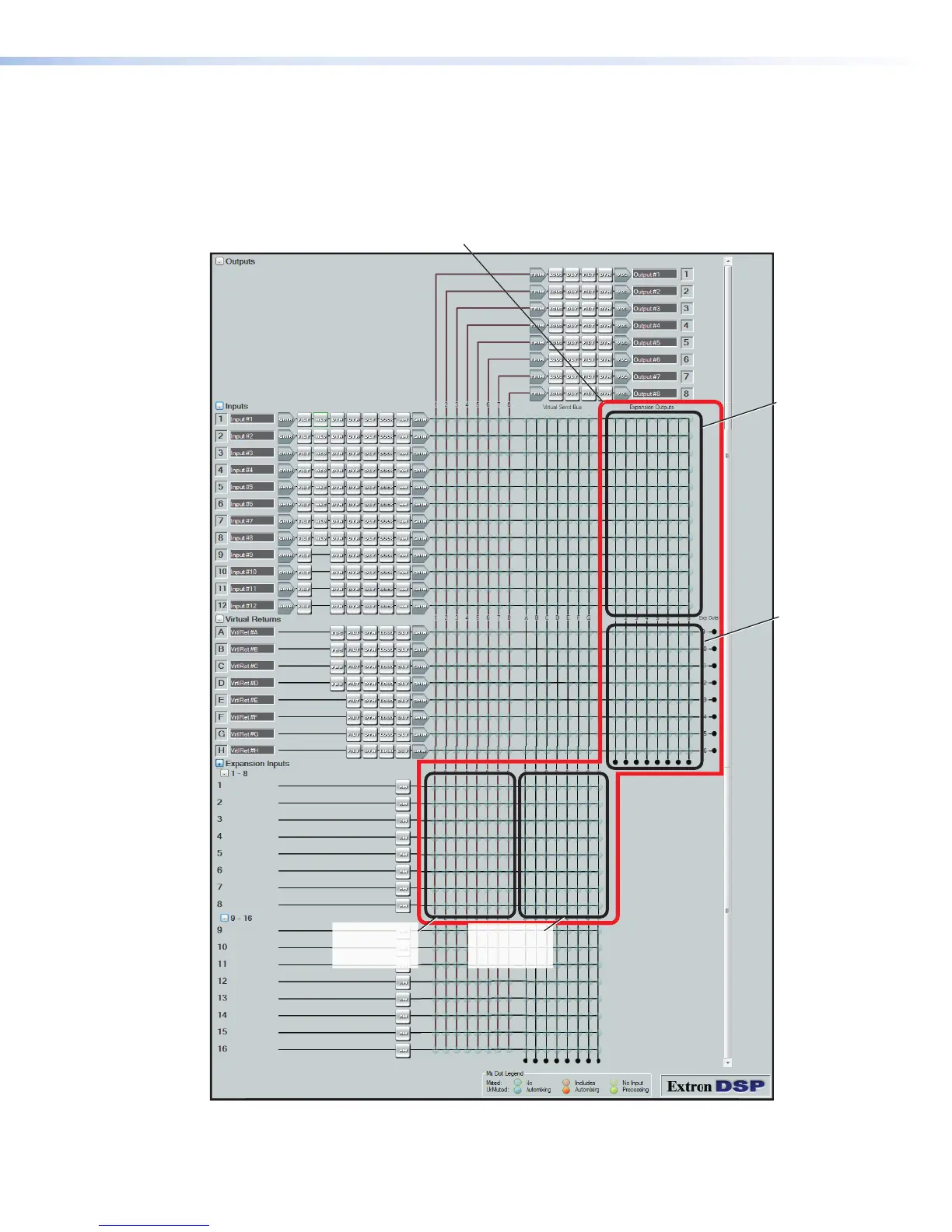

Figure 47. Expansion Bus Mix Matrix
DMP128 • Software Control 78
