Signal Routing with Dante
Channels either transmitted to the network, or received from the network are routed using
the main Dante network view (see figure 79).

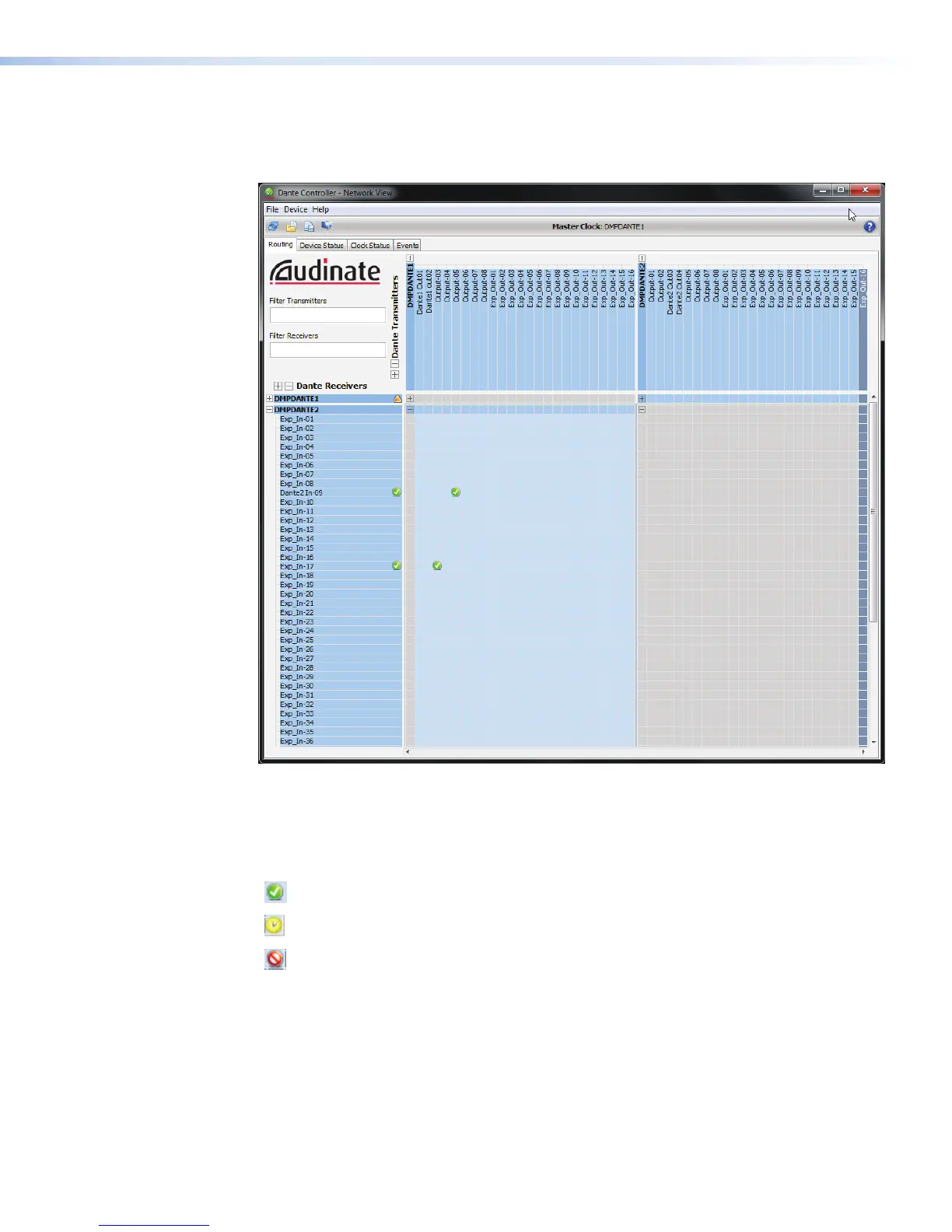

Figure 79. Dante Routing View
There are several icons used to communicate the status of both the transmitter and
receiver channels and the connections made.
Icon Description
Indicates an active connection
Indicates waiting for a connection to be made
Indicates a broken connection
The transmitters along the top, and receivers down the side form a matrix on the screen
whose intersection is the connection between the two. Click once at this intersection to
make the connection. Click again to break the connection.
See the Dante Controller Manual at www.audinate.com for additional information.
DMP128 • Dante Installation and Operation 124
