Selecting Live Mode and Pushing or Pulling Data
To switch from Emulate to Live mode:
1. Select the desired connection to the DMP128 and make the proper connections.
NOTE: Extron recommends connection via the Ethernet LAN port when using
DSPConfigurator.
2. Click Live (see figure 57,
b
). The communication type selection dialog opens.
or
or
Extron USB device
2
3
4a
4b
4c
5a
5b
5c
3
6a
6b
3

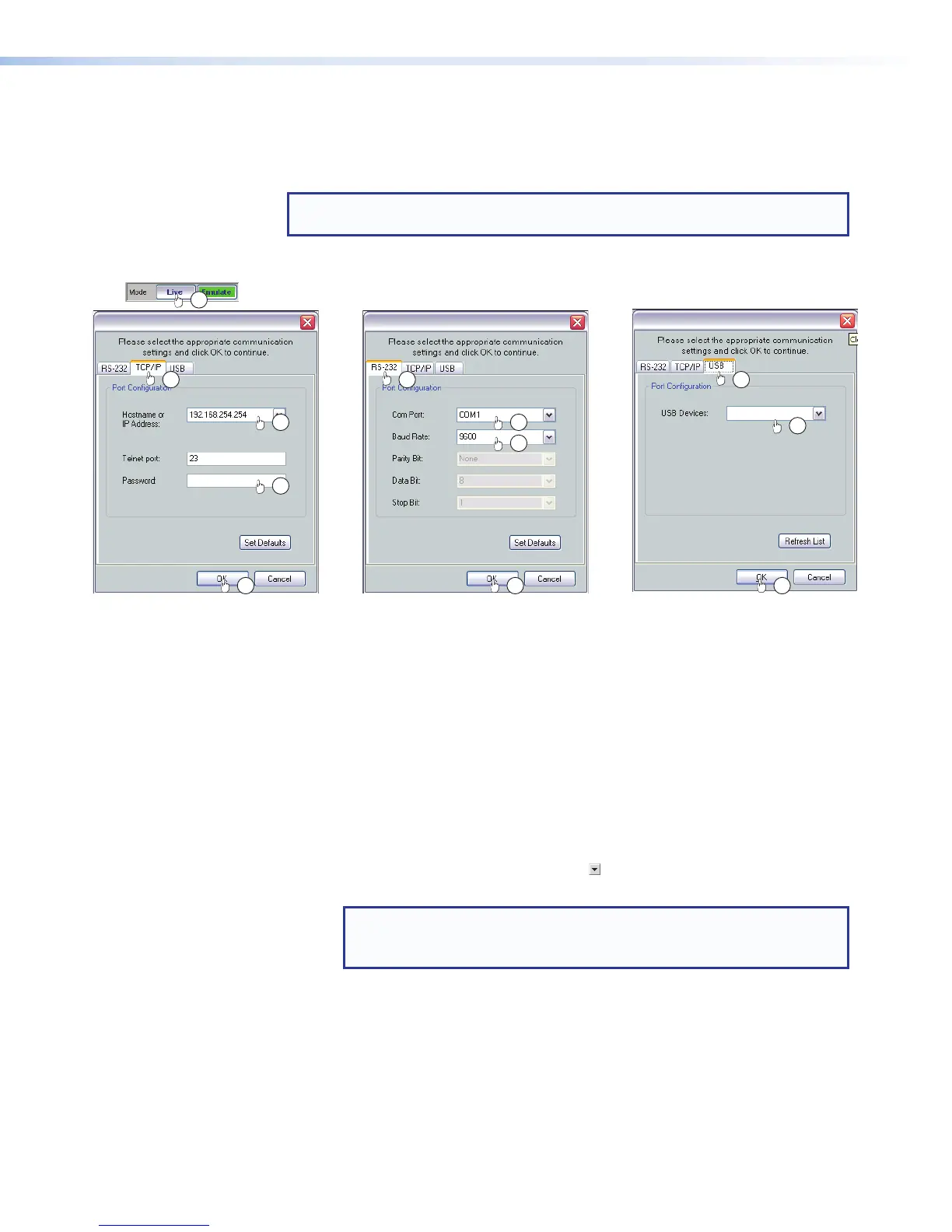

Figure 57. Selecting Live Mode
3. To select the connection method, click:
• TCP/IP (for connection of the LAN port (preferred) — proceed to step 4
• RS-232 (for connection of the rear panel RS-232 port — proceed to step 5
• USB (for connection of the front panel configuration port — proceed to step6
4. If TCP/IP is selected in step 3:
a. Observe the IP address field in the IP connection dialog box. The field displays
the last IP address entered.
• If the IP Address field is correct, proceed to step 4b
• If the address is not correct, either click in the IP Address field and
enter the correct IP address or click ( ) to open a drop-down list and select
from among recently used addresses. Proceed to step 4b
NOTE: If the local system administrators have not changed the value,
the factory-specified default, 192.168.254.254, is the correct value
for this field.
b. If the device is password protected, click in the Password field and enter the
appropriate administrator password
c. Click OK
The Synchronize with Device dialog box (see figure 58 on page 92) opens.
Proceed to step 7.
DMP128 • Software Control 90
