Selecting Inputs and Outputs for Dante
Dante Controller is used for all network level signal routing, however DSPConfigurator
assigns the input and output channels to the AT bus. The line outputs, expansion outputs,
and virtual returns are available on the AT bus outputs.
DMP128PAT Bus Outputs
Virtual Send Bus Expansion Outputs
1 2
3 4 5 6 7 8
Expansion Outputs
1 2
3 4 5 6 7 8
1 2
3 4 5 6 7 8
A B
C D E F G H
1 2
3 4 5 6 7 8
9
10
11
12
13
14
15
16
A B
C D E F G H
Inputs
Virtual Returns
Expansion Inputs
Outputs
1 - 8
9 - 16
1 2 3 4 5 6 7 8
DMP Outputs 1-8
to Dante Transmit (Tx)
Outputs 1-8
DMP Expansion
Outputs 1-8 to
Dante Transmit (Tx)
EXP Outputs 1-8
DMP Virtual Returns A-H
to Dante Transmit (Tx)
EXP Outputs 9-16
1
2
3

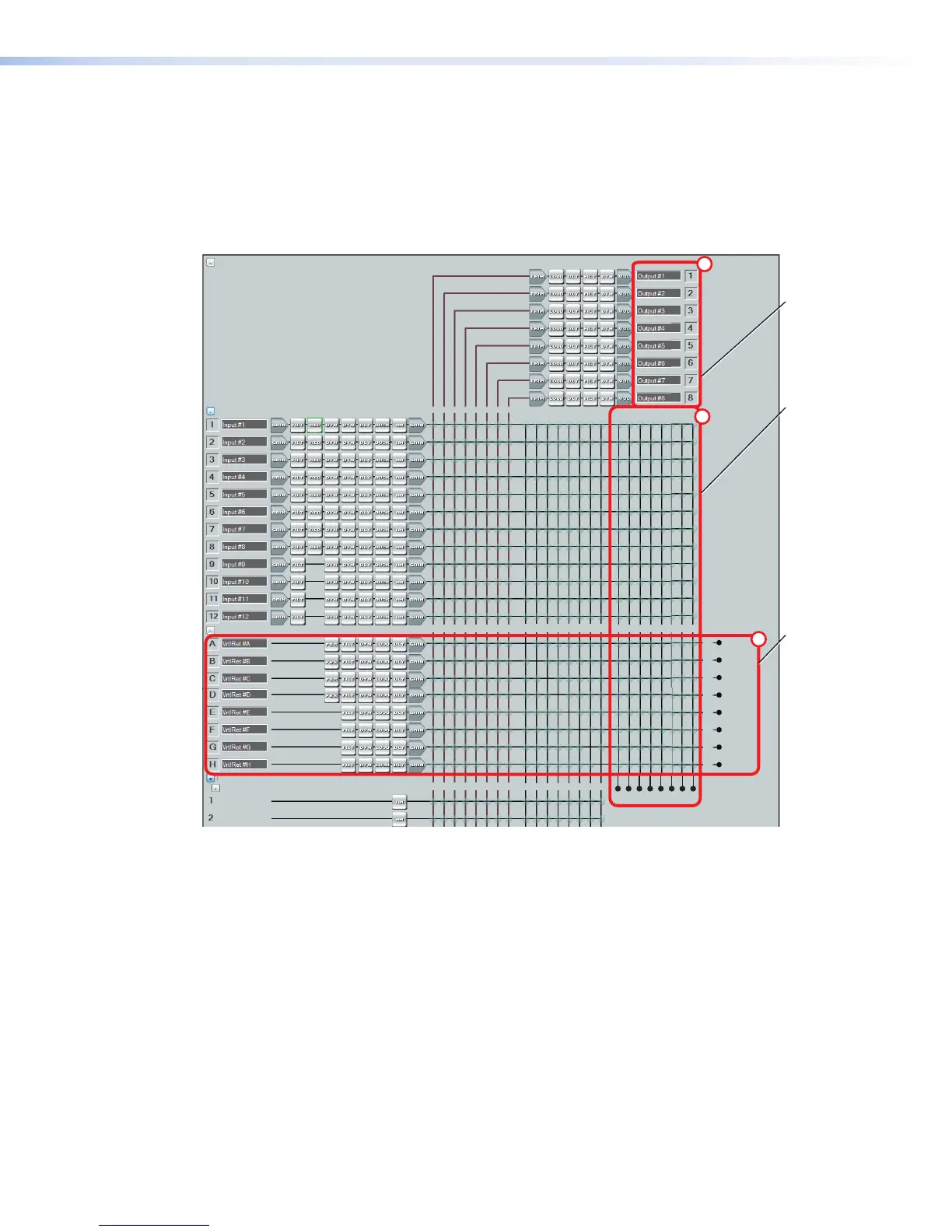

Figure 76. DSP Configurator AT Outputs (Dante Transmitter Channels)
In figure 76, the three areas that provide signal on the AT bus for the Dante transmitter
channels (see figure 77, next page) are outlined. All DMP128AT EXP outputs (see
figure76,
a
,
b
, and
c
) appear to Dante Controller as transmitters. The audio from
these outputs is always available to Dante compatible devices on the same network, and
appear as transmitters (see figure77,
d
on the next page) in Dante Controller.
DMP128 • Software Control 122
