Adding a Building Block
Custom building blocks are created using a signal path configured for a specific device.
For example, when a new mic is connected to Input #3, the signal path might be tailored
specifically for that mic.
In this example a gain setting is applied and a noise gate inserted. They are then stored as
a custom building block.

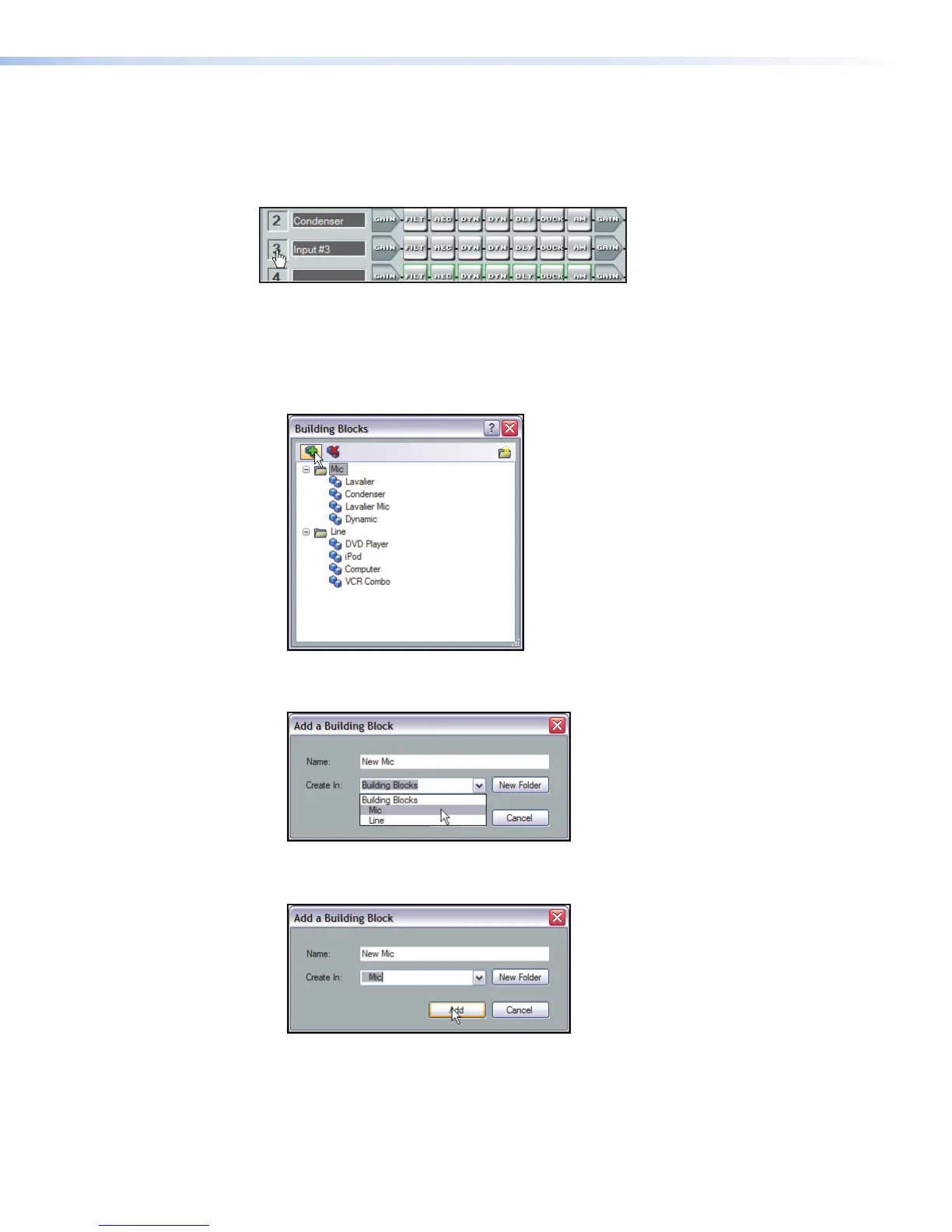

To create a building block for the new microphone:
1. Click inside the input number box (see above).
2. In the dialog box that opens, select the Add Block icon in the upper left.
The Add a Building Block dialog box opens.
3. In the dialog box, type a name for the new device in the Name: field.
4. Select a folder for the new device (see above).
5. Click Add.
