Mix-point Examples
In order to better understand how mix-points work, the following diagrams provide
examples of mixes.
NOTE: To simplify the diagrams not all input and output lines are shown.

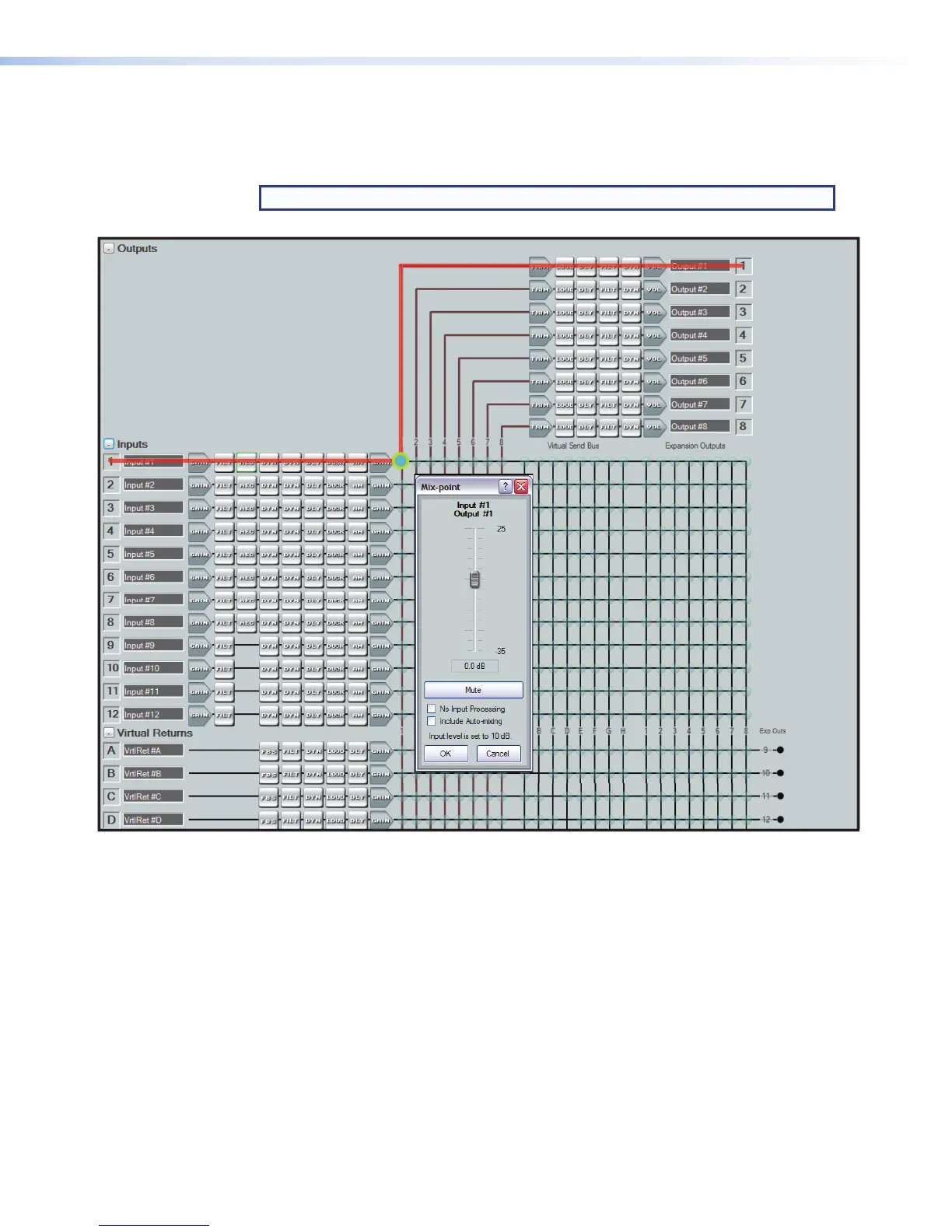

Figure 42. Input 1 to Output 1
In the first example (see figure 42) input audio from Input 1 is processed and arrives at the
output 1 matrix mix-point. Double-click the mix-point to open the dialog box. When the
mix-point is unmuted, the mix junction turns teal with a light green circle to indicate the
open mix-point dialog box is the focus, and the signal is routed to output1.
The mix level can be adjusted using the slider or by direct input of a value between – 35.0
and 25.0dB into the dialog box below the slider.
DMP128 • Software Control 73
