Extron electronics DMP 128 User Manual

a
bcdfge
m
l
hi
jk

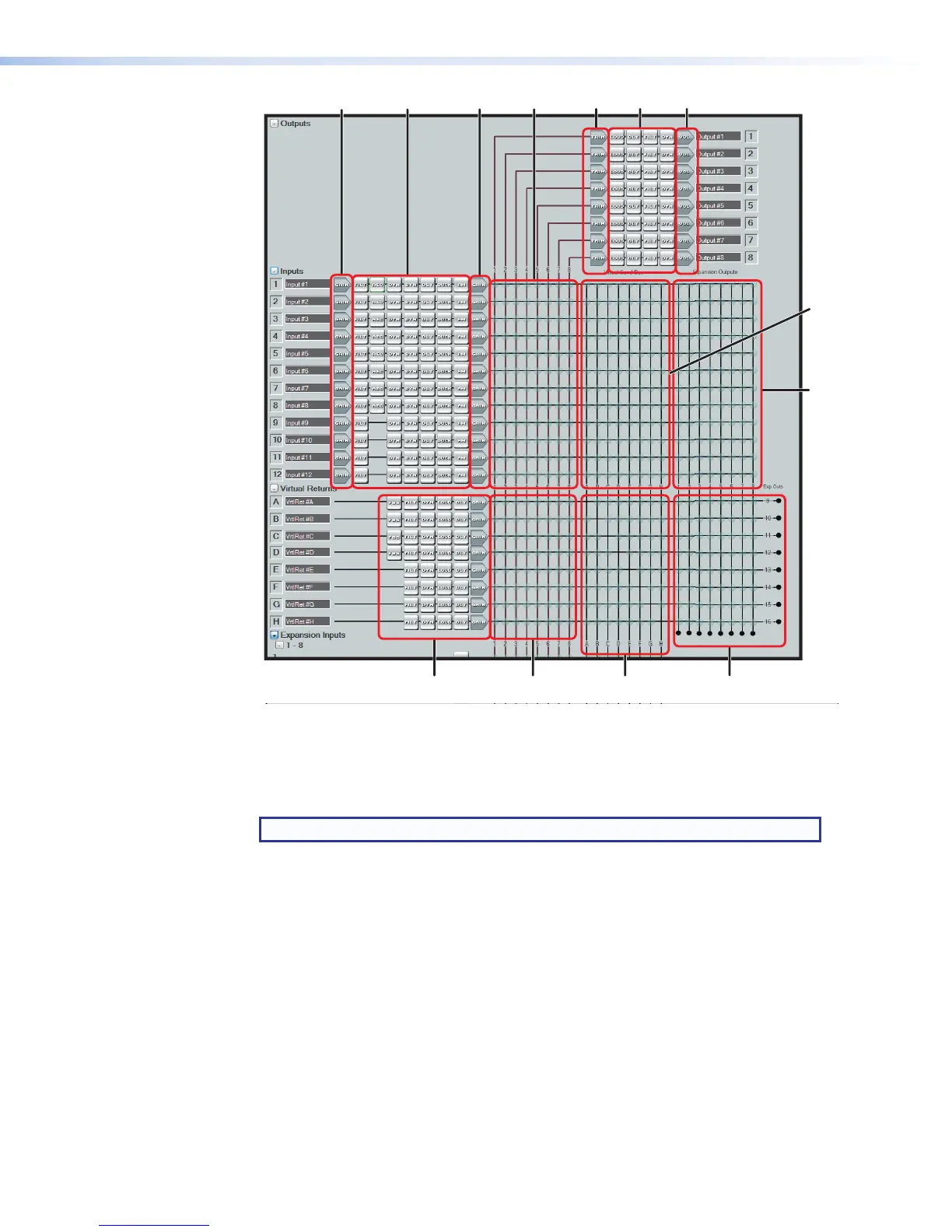

Figure 14. DMP128 DSP Configurator Main Screen
The DSP Configurator program screen consists of an input and virtual return signal
processor chain, the mix-points, and an output signal processing chain.
The main mixer is separated into segments as shown in figure 14.
NOTE: The expansion bus input mix-points are not shown in this view.
a Input gain controls h Virtual returns signal processor channels
and pre-mixer gains
b Input signal processor channels i Virtual returns to output mix-points
c Input pre-mixer gains j Virtual returns to virtual sends mix-points
d Inputs to Outputs mix-points k Virtual returns to EXP sends mix-points
e Output trim control (post-mixer trim) l Virtual send bus to virtual returns mix-points
f Output signal processor channels m Inputs to expansion sends mix-points
g Output volume controls
DMP128 • Software Control 18
