FAAC 746 C User Manual

19
746 C - 844 C 23 532150 - Rev.A
F+ -
8.8.
RADIO
+
1
2
3
4
5
6
7
8
9
10
11
12
18
19
20
21
22
23
24
IN1
IN2
IN3
IN4
IN5
IN6
IN7
2EASY
CAP
MOTOR
LAMP
17
16
15
14
13
RP/DECODER
M
230/115 V~
230 V~
60 W max
OP-A
OP_H
CL_H
EDCL +
EDOP +
OP-B
STOP
OUT 1
OUT 2
+24 V
+24 V
-
-
-
-
EDCL -
EDOP -
FSW OP
FSW CL
COM
N
L
1
2
PE
N
L
J14
J12
J6
J3
J5
J4
F1
F2
DISPLAY
J11
CONNECTIVITY
J10
J9
J8
DL20
DL21
DL12
ENC pcb
DL1 DL2
DL10
DL5 DL7
DL6
DL15
DL13
DL16
DL14
DL17
DL24
DL25
+ — F
J15
DL11
J17
DL3
DL4
DL23DL22
Translation of the original instructions
ENGLISH
5. ELECTRONIC INSTALLATION

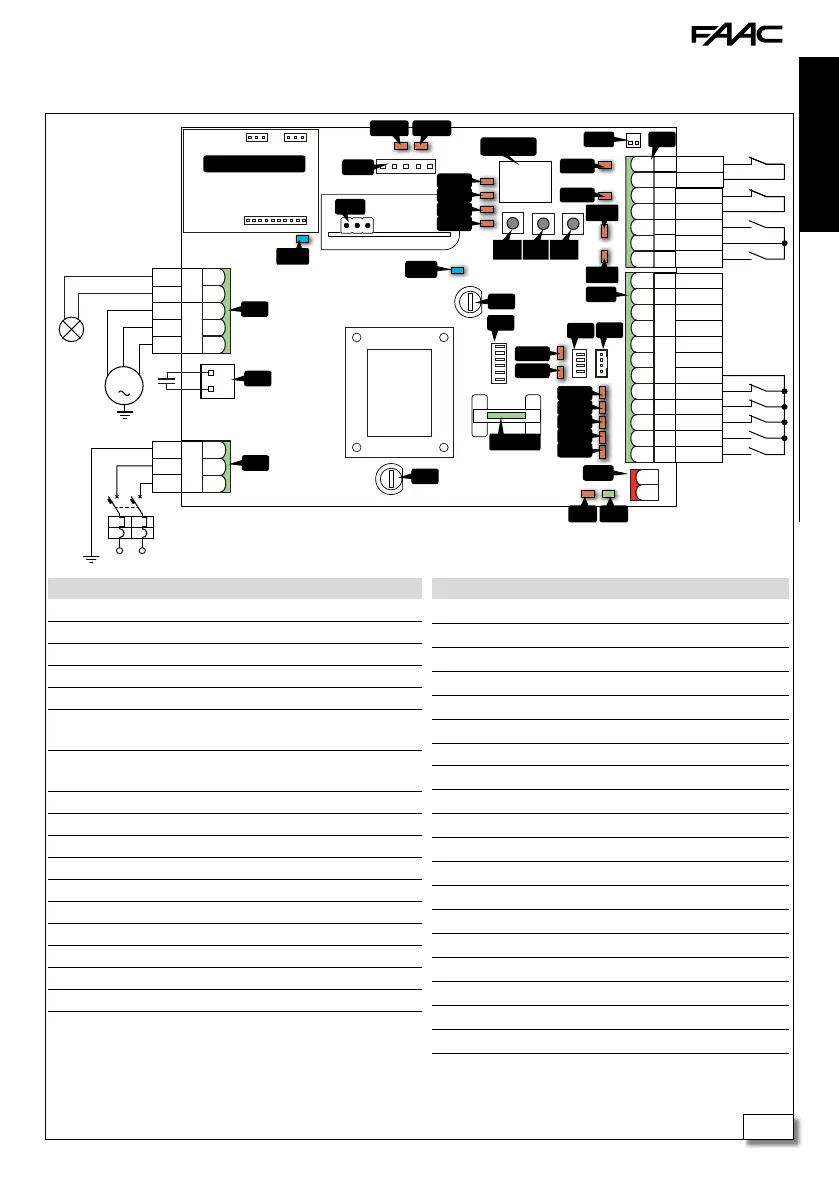

5.1 E781 BOARD COMPONENTS
Key
J3 Removable terminal board for the mains power supply
J4 Removable terminal board for motor and flashing light
J5 Connector for thrust capacitor
J6 Connector for encoder board
J8 Removable terminal board for Bus 2Easy devices
J9
Removable terminal board for control devices, programma-
ble outputs and accessories power supply
J10
Removable terminal board for sensitive edges and forced
commands
J11 Connector (5 pin) for FAAC radio/decoder boards
J12 Connector for inductive limit switch
J14 Connector for magnetic limit switch
J15 Connector (3 pin) for FAAC XF FDS or XF radio module
J17 Connector for LED lights on cover (NOT used)
DISPLAY Programming display
+ – F Programming buttons
F1 Fuse for mains power supply F 5A (230 V~) / F 10A (115 V~)
F2 Fuse for accessories power supply T 0.8A
CONNECTIVITY Connectors for Simply Connect/XUSB
ENC pcb Encoder reading board
LED (see section § Diagnostics)
DL1 Bus 2Easy operation
DL2 Bus 2Easy line diagnostics
DL3 RADIO XF FDS or XF channel 1 (CH1)
DL4 RADIO XF FDS or XF channel 2 (CH2)
DL5 Errors/alarms
DL6 Encoder
DL7 Closing sensitive edges
DL10 Opening sensitive edges
DL11 Accessories power supply +24 V
"
DL12 Power supply +5 V
"
DL13 Stop command (STOP)
DL14 Closing photocells
DL15 Opening photocells
DL16 OPEN B
DL17 OPEN A
DL20 Forced closing command
DL21 Forced opening command
DL22 Radio activity RP channel 1 (CH1)
DL23 Radio activity RP channel 2 (CH2)
DL24
DL25
Opening/closing limit switch (depending on the direc-
tion of travel)

FAAC 746 C Specifications

General

Brand	FAAC
Model	746 C
Category	Garage Door Opener
Language	English
