746 C - 844 C 3 532150 - Rev.A
A
3
A
2
1
4
Translation of the original instructions
ENGLISH

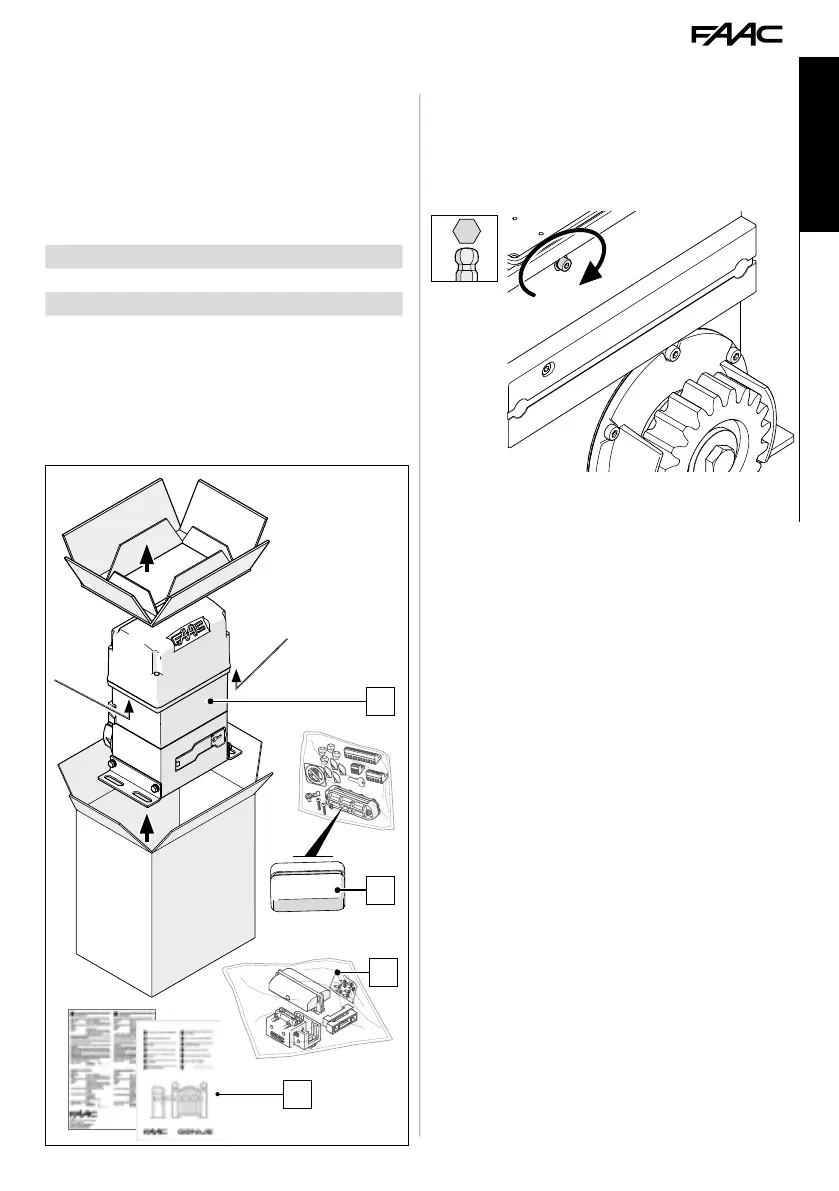

2.1 UNPACKING AND HANDLING
1. Open the package and remove the contents.
- Do not lift the gearmotor by the cover or the
electronic board. Grip the body of the gearmotor
using the handholds A.
2. Check that all components are present and intact
(See § Component identification).
1 Gearmotor
2 Gearmotor bracket guards and Hardware/accessories
3 Limit switches
4 Supplied documentation
2. 746 C 844 C
VENT CLOSURE
The gearmotor is supplied with the vent hole closed
with a screw and washer.
Whenever it is handled, the vent must be closed to
prevent oil leaking out.
4
