User Manual SCREEN MIX CONTROLS February 16, 2010
Xynergi Media Production Centre Page 195

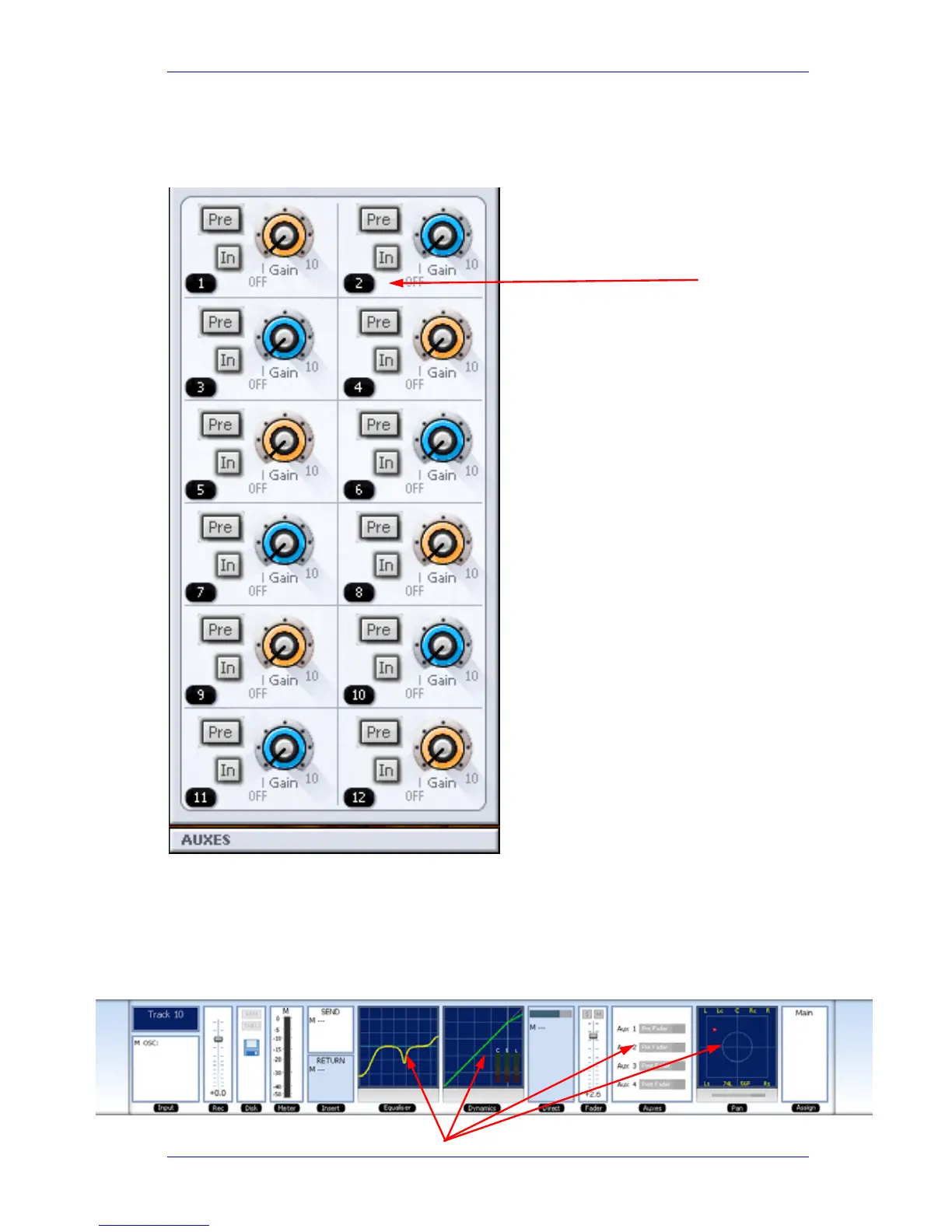

Aux Sends
Satellite-AV provides 12 aux sends. Each send from each channel has an independent Pre/Post
switch and In/Out control.
Zoom Panels
It is possible to see more detail when adjusting EQ, Dynamics and Pan control, using Zoom
Panels. In particular, numeric values for all parameters are shown, and update as they are
changed.
To display a zoom panel, right click in the corresponding display in the Fat Channel.
Aux 2 send IN / OUT
