Maintenance – Special instructions
2018-02-20 4812325559EN 97
Hydraulic System Pressure Values
The machine has 8 pressure measurement points, and
maintenance and verification can be performed through them:
POINT 1 – Steering system pressure measurement point It is
located on the front chassis, at the left side, next to the joint.
 Measurement pressure: Maximum of 170 bar (2,466
psi)

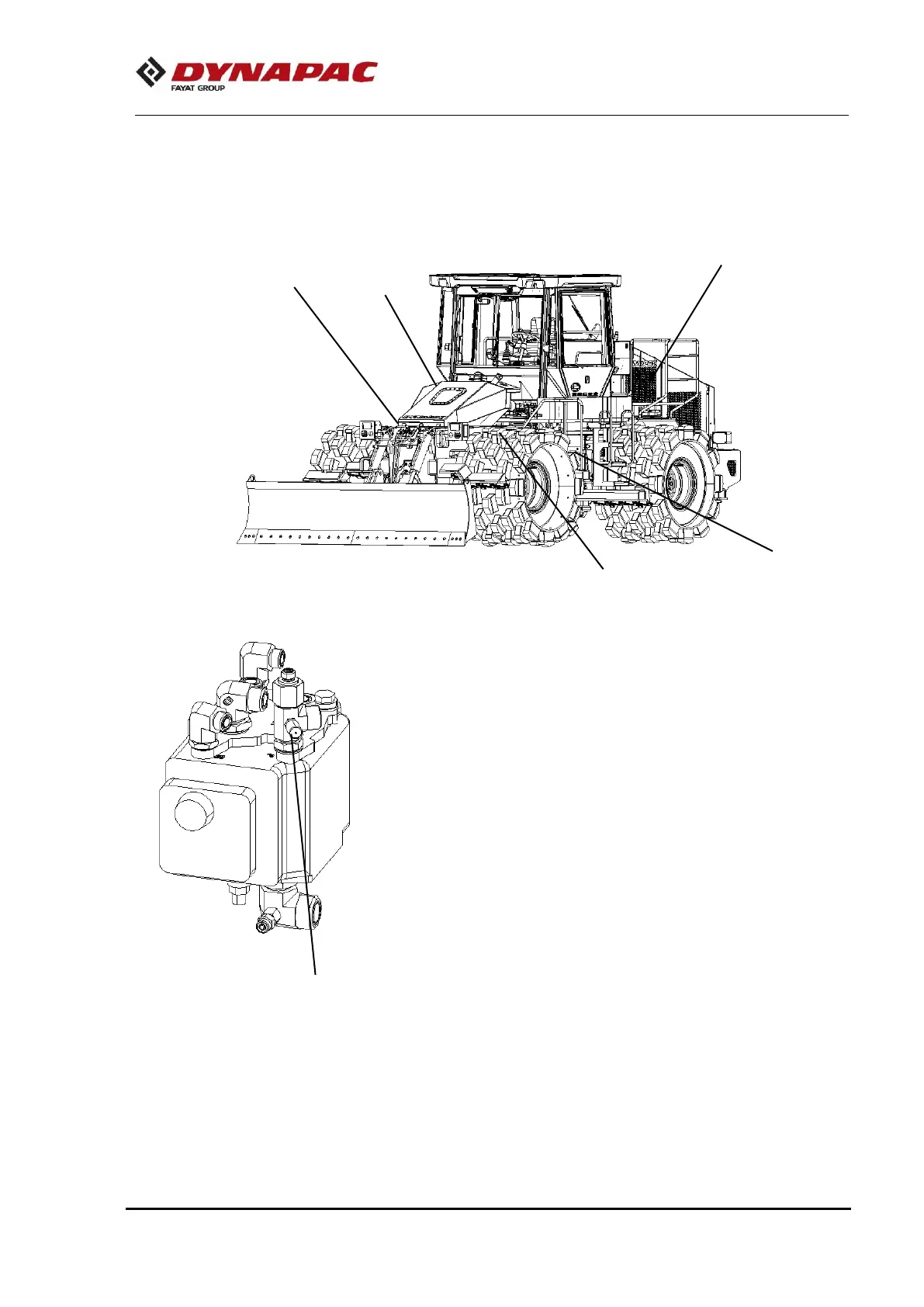

Fig. – Measurement point 1
1
1
7
6
8
2 / 3 / 4 / 5
