10 4812325559EN 2018-02-20
Operator's instruments and controls
Multifunction display, side control panel and
operator's control keyboard

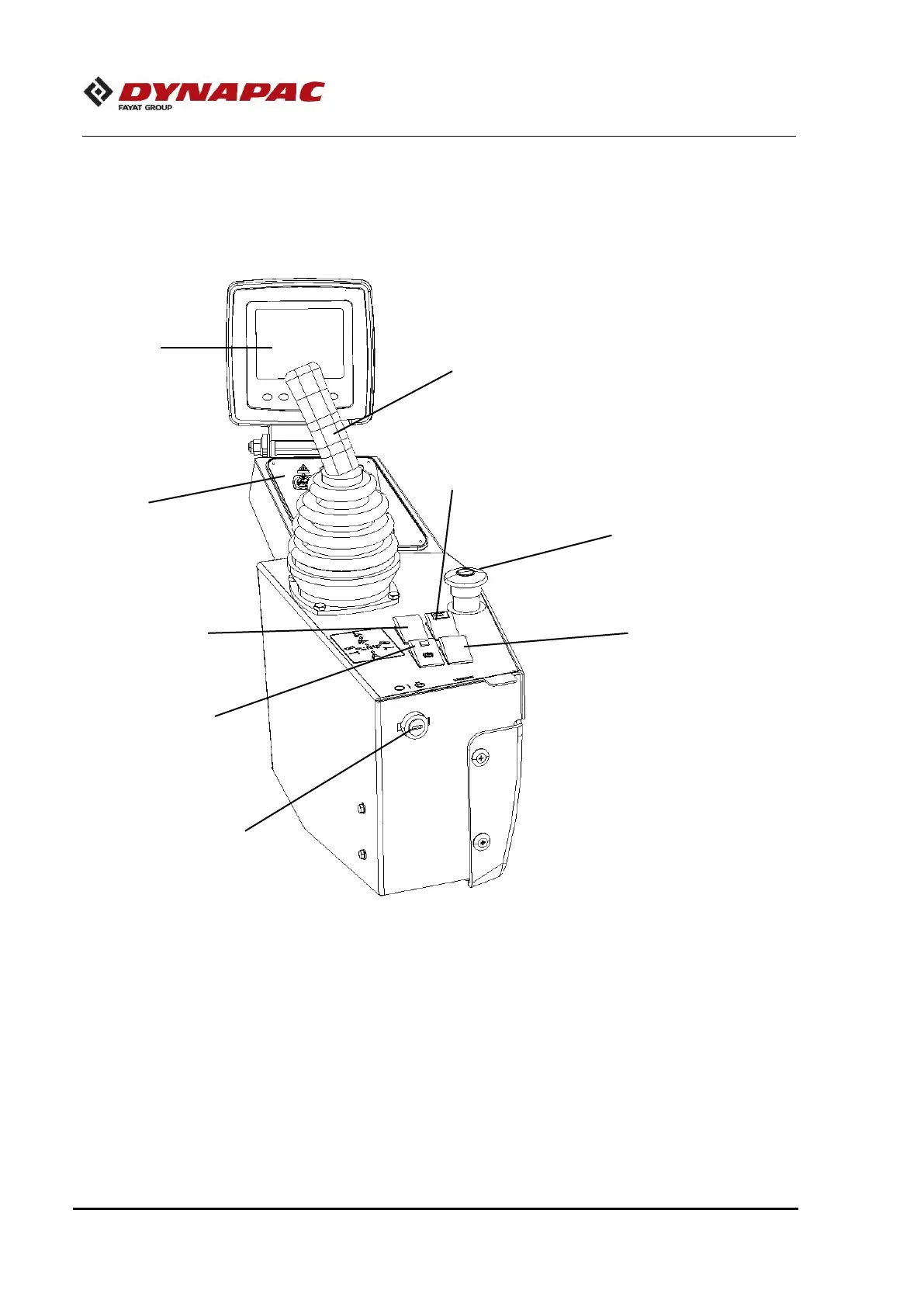

1. Multifunction display
2. Operator's Control Keyboard
3. Warning lights switch
4. Parking brake switch
5. Starter key switch
6. Beacon warning light switch (Optional)
7. Emergency stop button
8. "Go Home" switch
9. Blade control joystick
3
4
5
6
7
8
2
1
9
