Emergency procedures
Failure on the transmission or engine electric
system

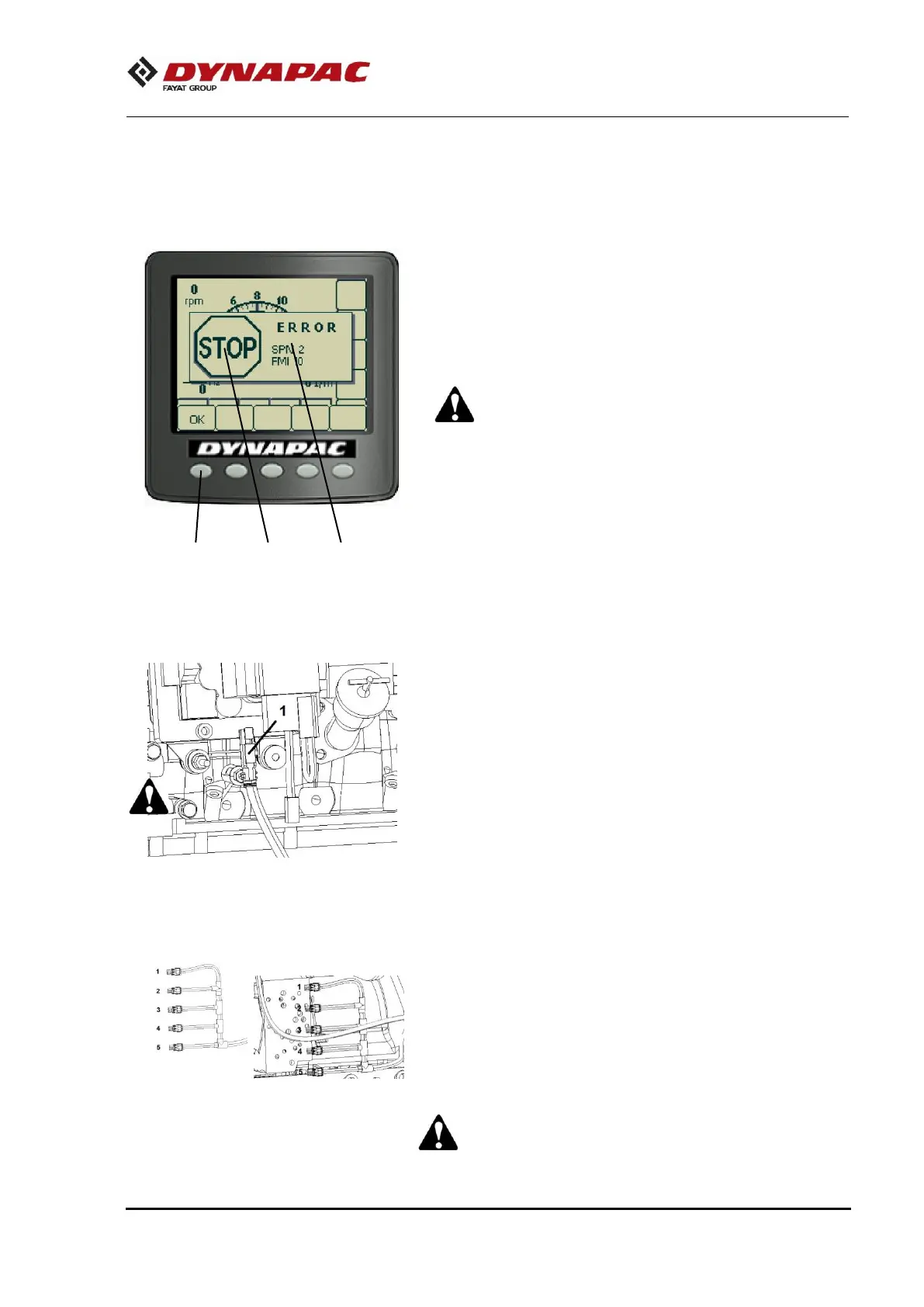

When the electronic module detects a problem related to the
transmission or engine control, the multifunction display will
inform the operator through a message with the symbol (2) and
the FMI and SPM code (according to DM1 - SAE J1939) of the
failure (3), and the machine will be prevented from moving as
usual, switching to the emergency movement mode (refer to “Go
Home” Switch, on the page 10).
When this failure happens, park the machine on a
safe place and contact DYNAPAC.
Press the “OK” button (1) on the screen to delete the message.
To activate the transmission emergency mode, carry out the
following procedure:
1. Open the right engine door and connect the XGT
connector.
Turn off the engine and keep the start engine switch in “O”
position.
2. Open the right cover next to the battery cover,
disconnect the cables plugged to the transmission and
connect the cables of the emergency mode, already in the
machine.
.
Be certain that the transmission emergency mode
switch is on the middle position.
Fig 2 – Transmission harness
