Maintenance – Special instructions
2018-02-20 4812325559EN 99
POINT 7 – Rear brake measurement point. It is located on the
rear chassis, at the right side, next to the joint and transmission.
 Measurement pressure: Maximum of 40 bar (580 psi).

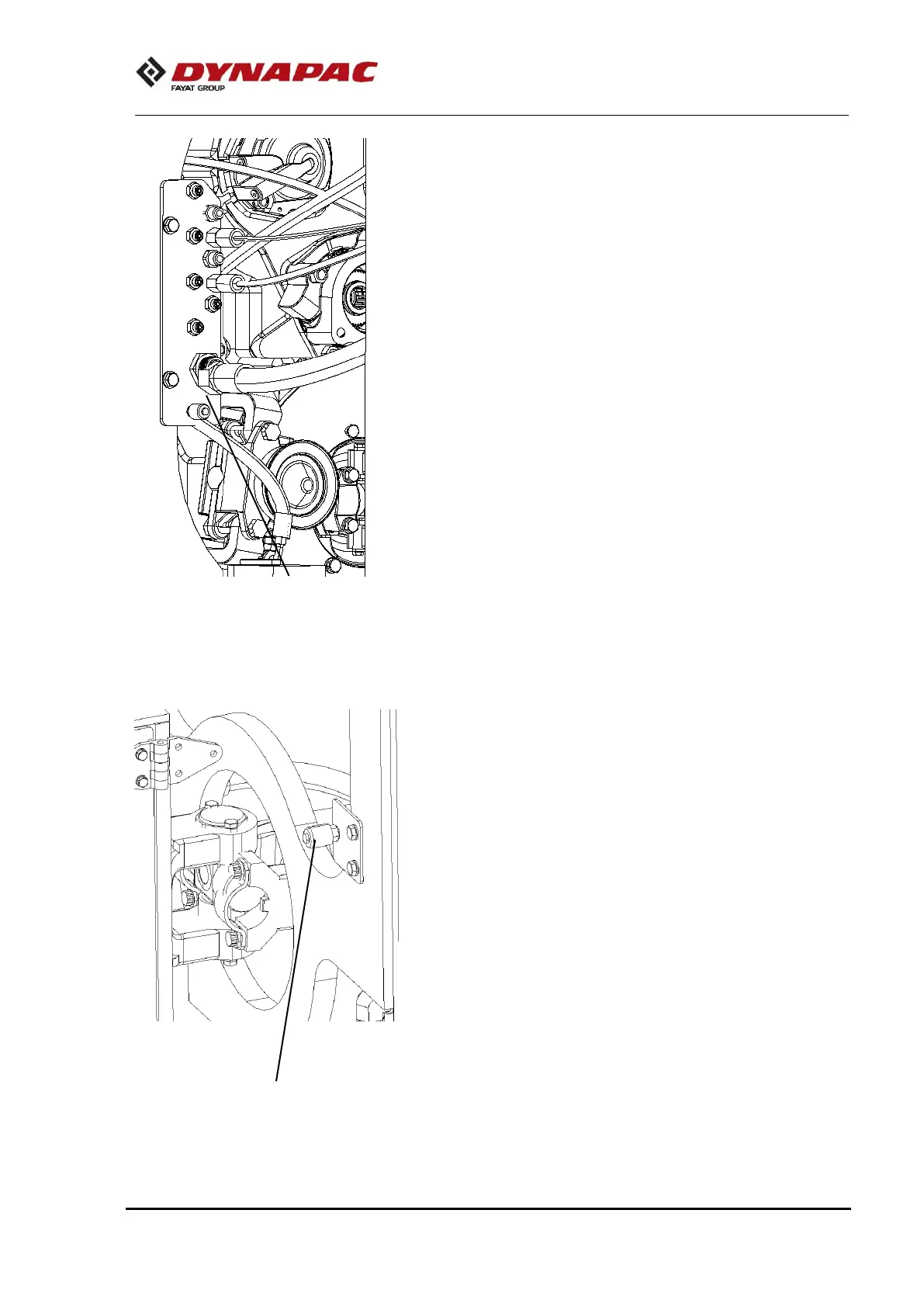

POINT 8 – Front brake measurement point. It is located on the
front chassis, at the right side, next to the joint.
 Measurement pressure: Maximum of 40 bar (580 psi).
8
Fig. – Measurement point 8
Fig. – Measurement point 7
7
