2018-02-20 4812325559EN 101

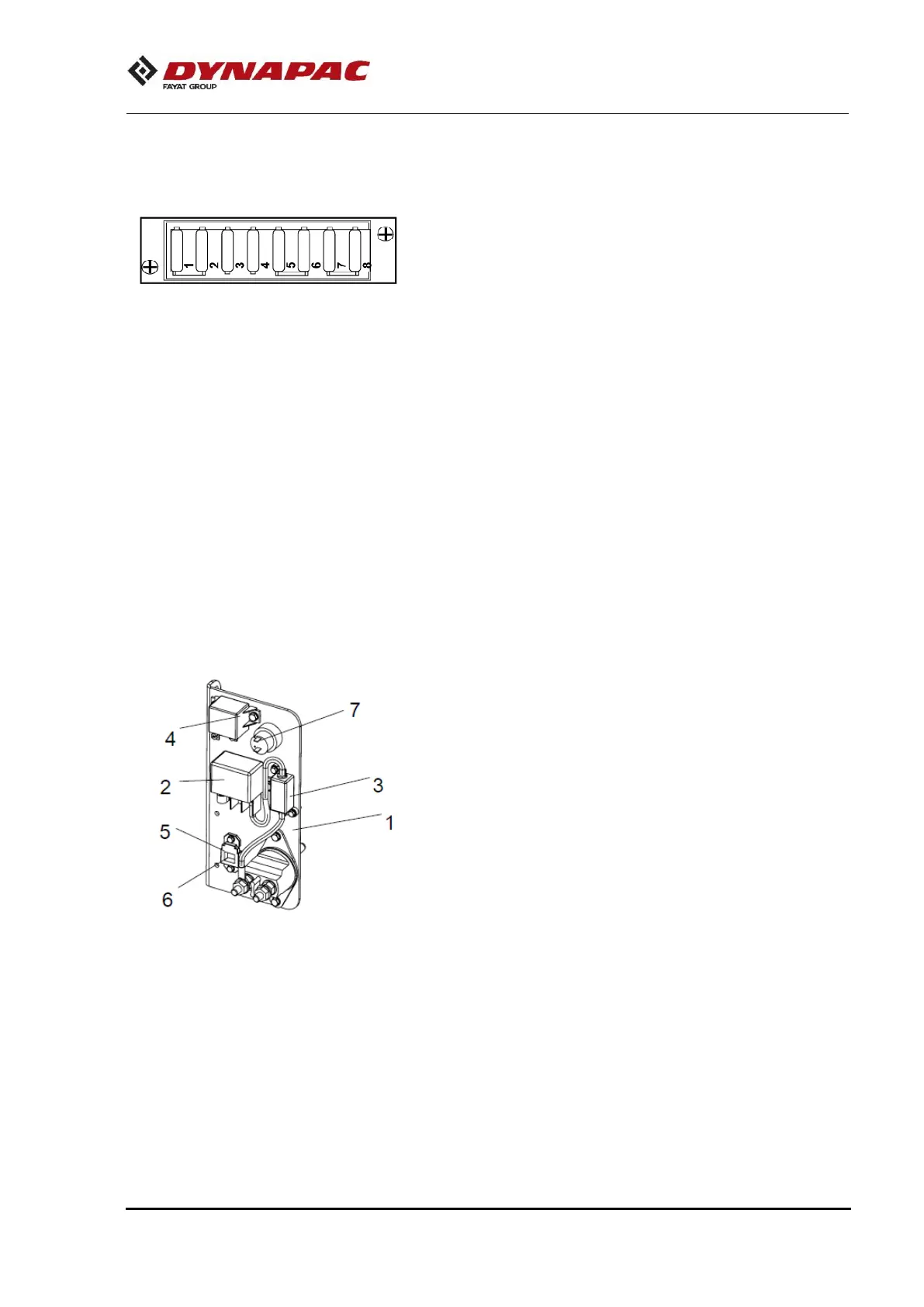

Cabin fuse box
It is located on the cabin roof, above the switch panel.
1. Inner Illumination (10A)
2. CD/Radio (10A)
3. Air Conditioning (15A)
4. Heating system (10A)
5. Front windshield washer and wiper (10A)
6. Rear windshield washer and wiper (10A)
7. Free
8. Free
Main fuse panel
The main fuse panel is located behind the battery main switch,
on the batteries compartment.
1. Main switch
2. Pre-heating relay (120A)
3. Fuse F20 (pre-heating 125A)
4. Starting relay (50A)
5. Fuses F13 (Engine 30A ECM), F10 (main 50A) and F11
(cabin 50A)
6. Fuse F5 (cabin/CD/radio 10A)
7. Electric jack, 24 V
