Preparation to use the roller
2018-02-20 4812325559EN 45

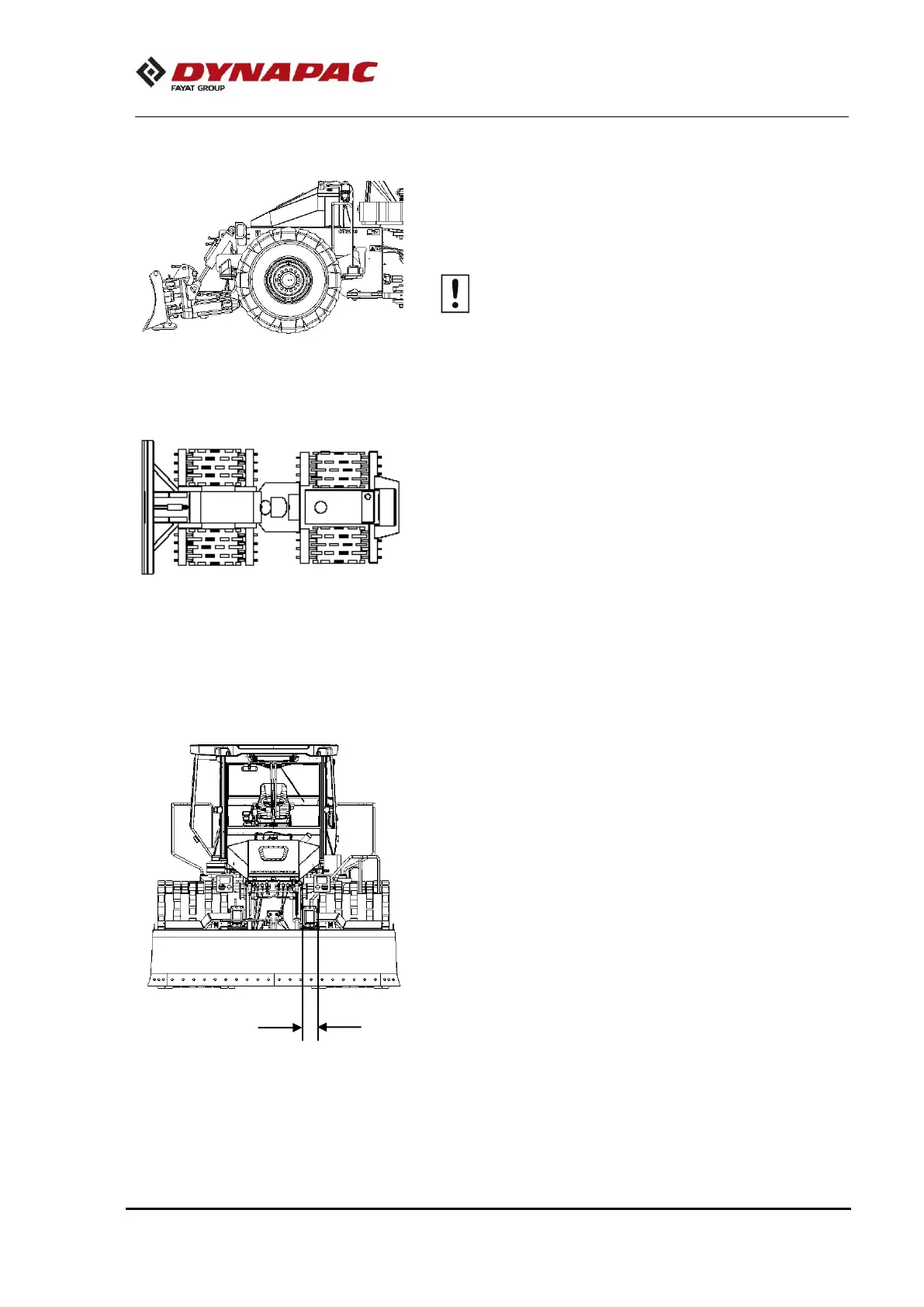

Assembly of the tamping cylinder
Identify the front and rear cylinders and note that the front ones
have a distance between the rim of the tire and the roller
extremities of approximately 9.4" (240 mm), while the rear's
distance is of approximately 5" (129 mm).
The cylinder's position on the equipment is marked
on both cylinders:
Front: 9.4" (240 mm)
Rear: 5" (129 mm)
Positioning the cylinder on the machine
Make sure that the pads meet the standard of the following figure
during the installation of the cylinders:
Installation of the tamping cylinders
Check the minimum distance between the tire and the support
easels, so that the cylinders will not touch them, thus preventing
the installation to happen.
Fig. – Position of the tamping cylinders
Fig. – Installation of the tamping cylinders
