Preparation to use the roller
2018-02-20 4812325559EN 47
Installing the scrapers
The scrapers are provided with the scraping bars, however, they
are not initially adjusted.
Install the scraping bar and apply the torques according to the
following figure:
Adjustment of the scraping bars
Check and, if necessary, adjust the positioning of the scraping
bars at a 1" (25 mm) gap.
NOTE: Use a bar with a 1ā diameter (approx. 25 mm) to assist
on adjustment.
For the transportation of the machine for long
distances, it is recommended to disassembly all the
accessories referred to in this chapter, so they can
be assembled and adjusted later.
M20 BOLTS:
383.5 lb.ft (520 N.m) (dry)
346.6 lb.ft (470 N.m) (greased)

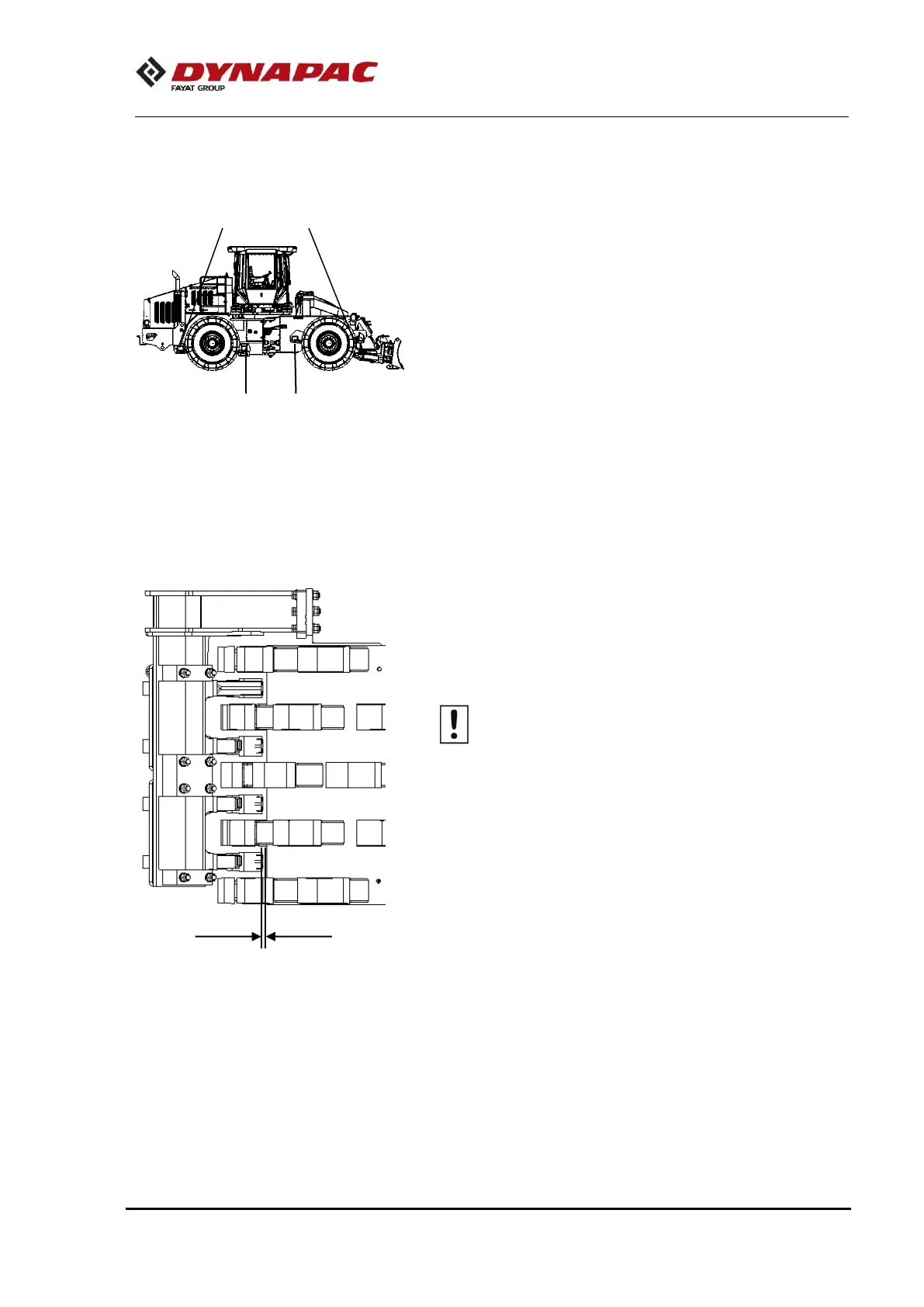

Fig. - Installing the scrapers
M16 BOLTS:
199.1 lb.ft (270 N.m) (dry)
177 lb.ft (240 N.m) (greased)
Fig. ā Adjustment of the scraping bars.
