A. Technical appendix
A−12
Festo P.BE−CPEA−CL−EN en 0711a

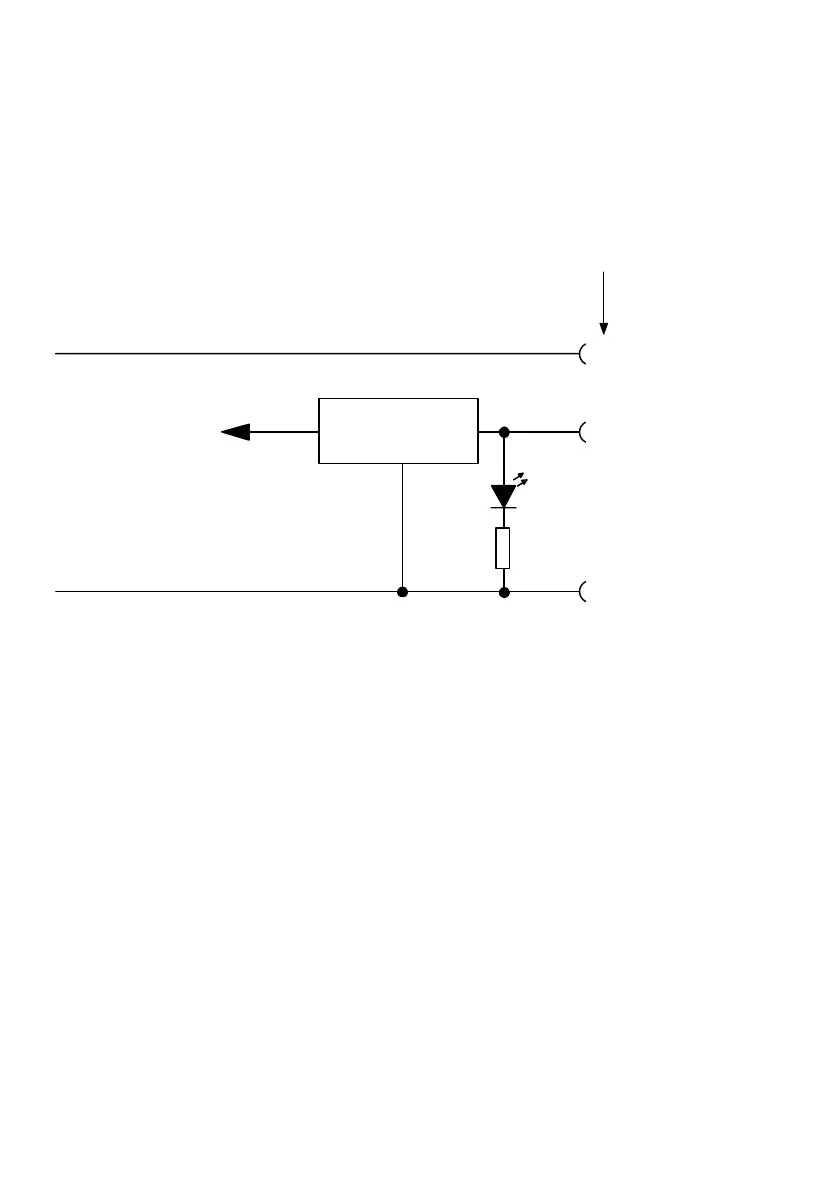

A.2.3 Internal structure type CP−E08−M8−CL and CP−E16−M8−EL
Pin 1
Pin 4
Pin 3
23
4
24V
0V
1
1
Pin assignment
1: 24V
4: Ix
3: 0V
2 PLC/IPC Ix (e.g. via fieldbus)
3 Logic identifier Ix
4 Green LED Ix
Ix = Input x
Fig.A/2: Internal structure type CP−E08−M8−CL and CP−E16−M8−EL
