4. Input modules type CP−E16−M...−EL and CP−E32−M8−EL
4−4
Festo P.BE−CPEA−CL−EN en 0711a
4.1.1 Display and connecting elements

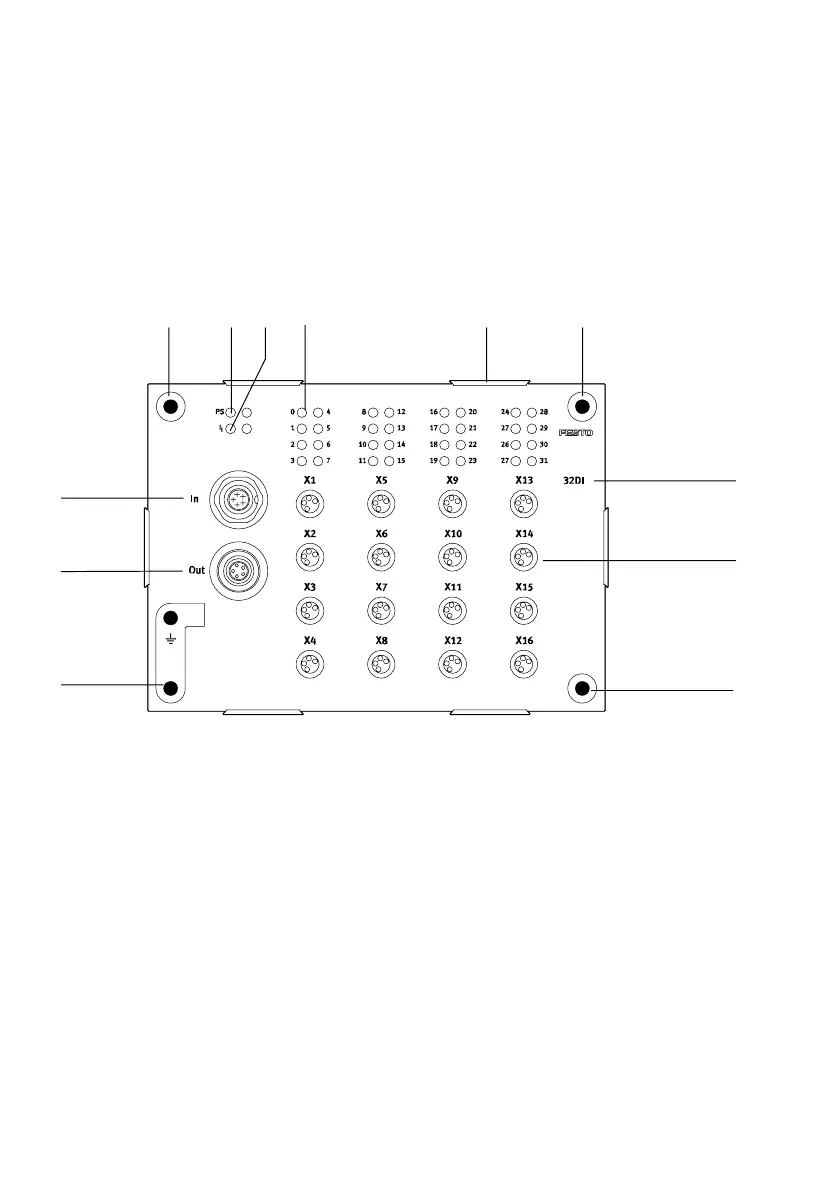

The following diagram shows the display and connecting
elements of input module CP−E32−M8−E L.
1
2
3
45 67 8
9
aJ
4
4
1
CPI connection incoming
2 CPI connection continuing
3 Fastening hole with earth connection
4 Fastening holes
5 Status LED CP communication
(PS, green)
6 Status LED short circuit/overload in
sensor supply (red)
7 Status LEDs for inputs
(status display, green)
8 Mounting for inscription label holder
(type: ASCF−H−E2)
9 Module designation
aJ 32 sensor connections (two inputs per
socket)
Fig.4/1: Display components and connecting elements type CP−E32−M8−EL
