4. Input modules type CP−E16−M...−EL and CP−E32−M8−EL
4−5
Festo P.BE−CPEA−CL−E N en 0711a

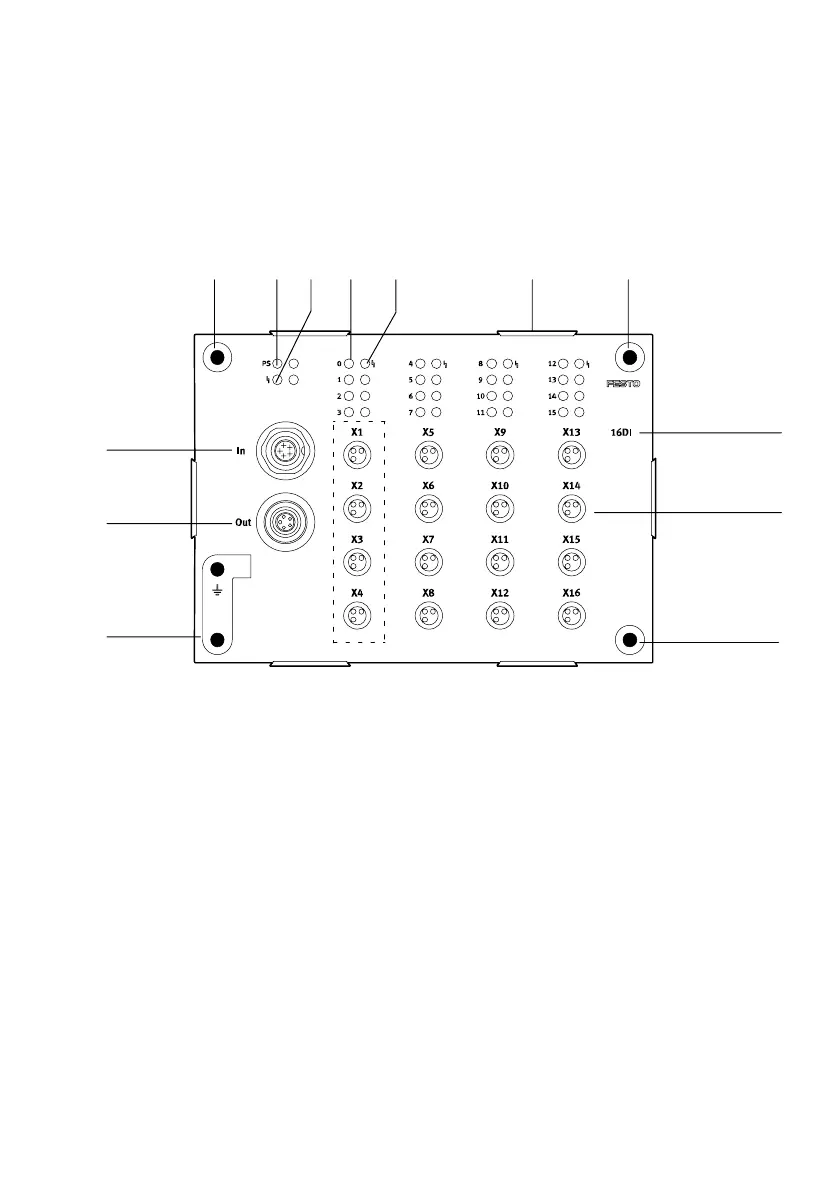

The following diagram shows the display and connecting
elements of input module CP−E16−M8−E L.
1
2
3
45 678 9
aJ
aA
4
4
Group
1 CPI connection incoming
2 CPI connection continuing
3 Fastening hole with earth connection
4 Fastening holes
5 Status LED CP communication
(PS, green)
6 Status LED (module) short
circuit/overload in sensor supply (red)
7 Status LEDs for inputs
(status display, green)
8 Status LED (group)
short circuit/overload in sensor supply
(red)
9 Mounting for inscription label holder
(type: ASCF−H−E2)
aJ Module designation
aA 16 sensor connections (one input per
socket)
Fig.4/2: Display components and connecting elements type CP−E16−M8−EL
