2. Input modules types CP−E08−M...−CL and CP−E16−KL−CL
2−3
Festo P.BE−CPEA−CL−E N en 0711a
2.1 Function of the input modules CP−E08−M...−CL and CP−E16−KL−CL
CP input modules provide digital inputs for connecting sen
sors, thereby enabling e.g.cylinder positions to be scanned.
A distinction is made between the following types:

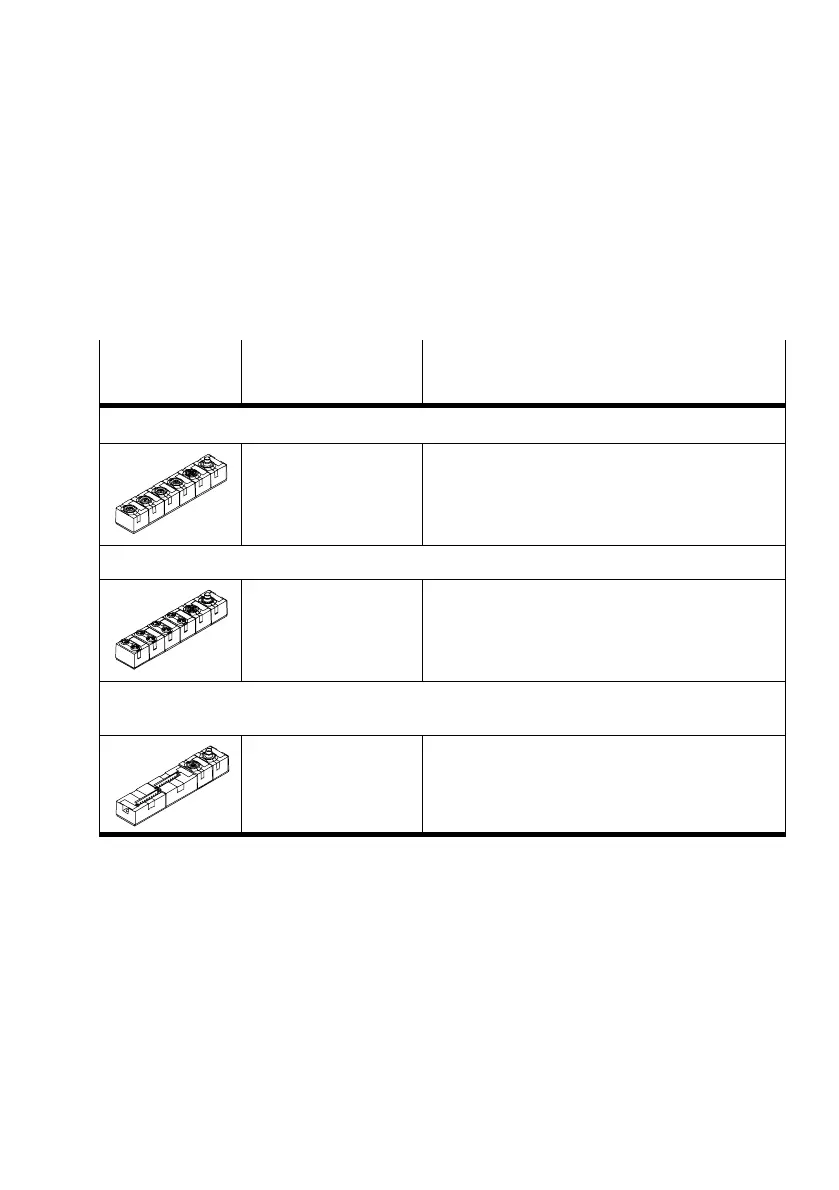

Product
illustration
Type Explanation
Sensor connections via 4 sockets with M12 thread, 5−pin
CP−E08−M12−CL Provides 8 PNP inputs (IP65/IP67).
Sensor connections via 8 sockets with M8 thread, 3−pin
CP−E08−M8−CL Provides 8 PNP inputs (IP65/IP67).
Sensor connections via 2 series plugs, 10−pin and connector sockets in either screw or tension spring
design.
CP−E16−KL−CL Provides 16 PNP inputs.
Especially suitable for fitting into a control cabinet
(IP20).
Tab.2/1: Overview of input modules
