2. Input modules types CP−E08−M...−CL and CP−E16−KL−CL
2−4
Festo P.BE−CPEA−CL−EN en 0711a
2.1.1 Display and connecting elements
The following diagram shows the display and connecting
elements of input module CP−E08−M12−CL.
1 CP connection
incoming
2 Continuing
CP connection
3 Status LED short
circuit/overload/
undervoltage in
sensor supply (red)
4 Status LEDs for
inputs (status
display, green)
5 Status LED CP
communication
(PS, green)
6 Mounting hole
7 Name plate
8 Groove for identifica
tion signs (6x) (type
IBS 8x20)
9 Sensor connections
(2 inputs per socket)
aJ Fastening hole with
earth connection
1
2
3
4
5
6
7
8
9
aJ

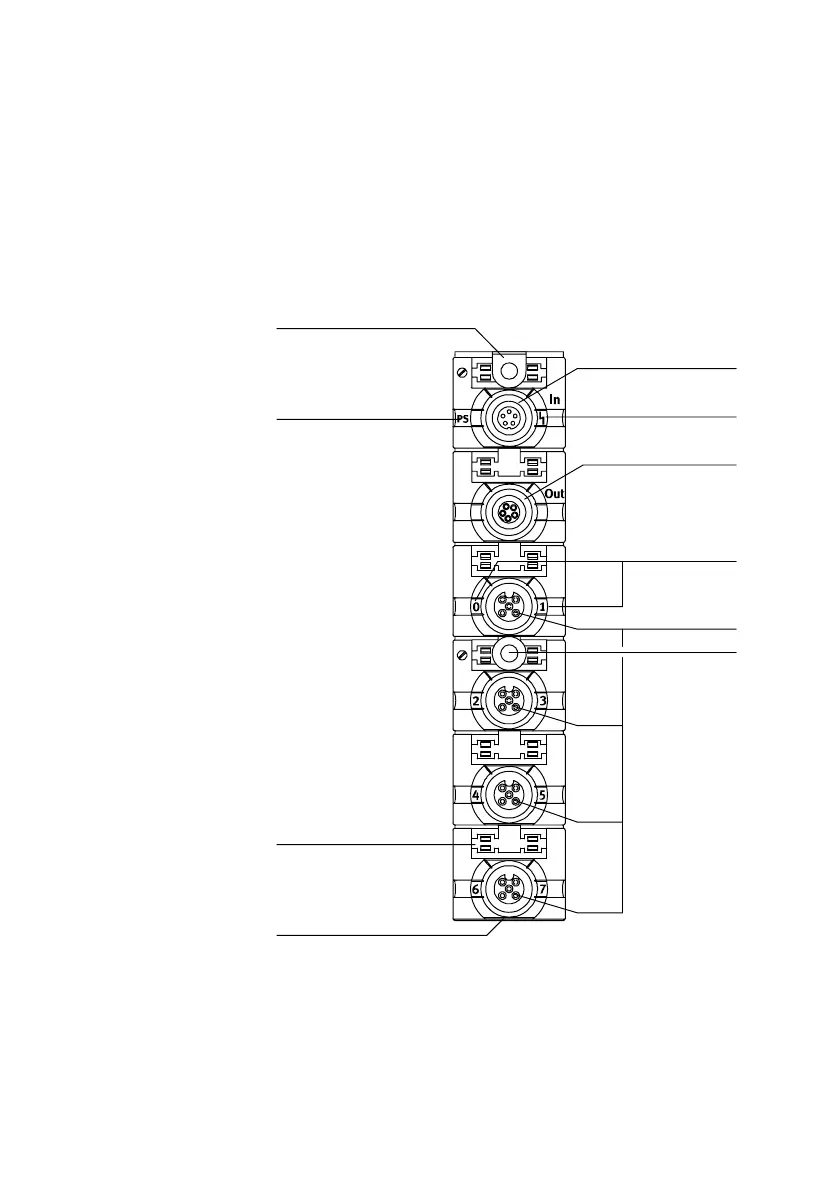

Fig.2/1: Display and connecting elements type CP−E08−M12−CL
