A. Technical appendix
A−29
Festo P.BE−CPEA−CL−E N en 0711a
A.6.4 Connector sets for input module type CP−E16−KL−CL
Recommendation: Use the connector sockets type
PS1−SAC31−30POL+LED for the input module type CP−E16−KL−
CL.

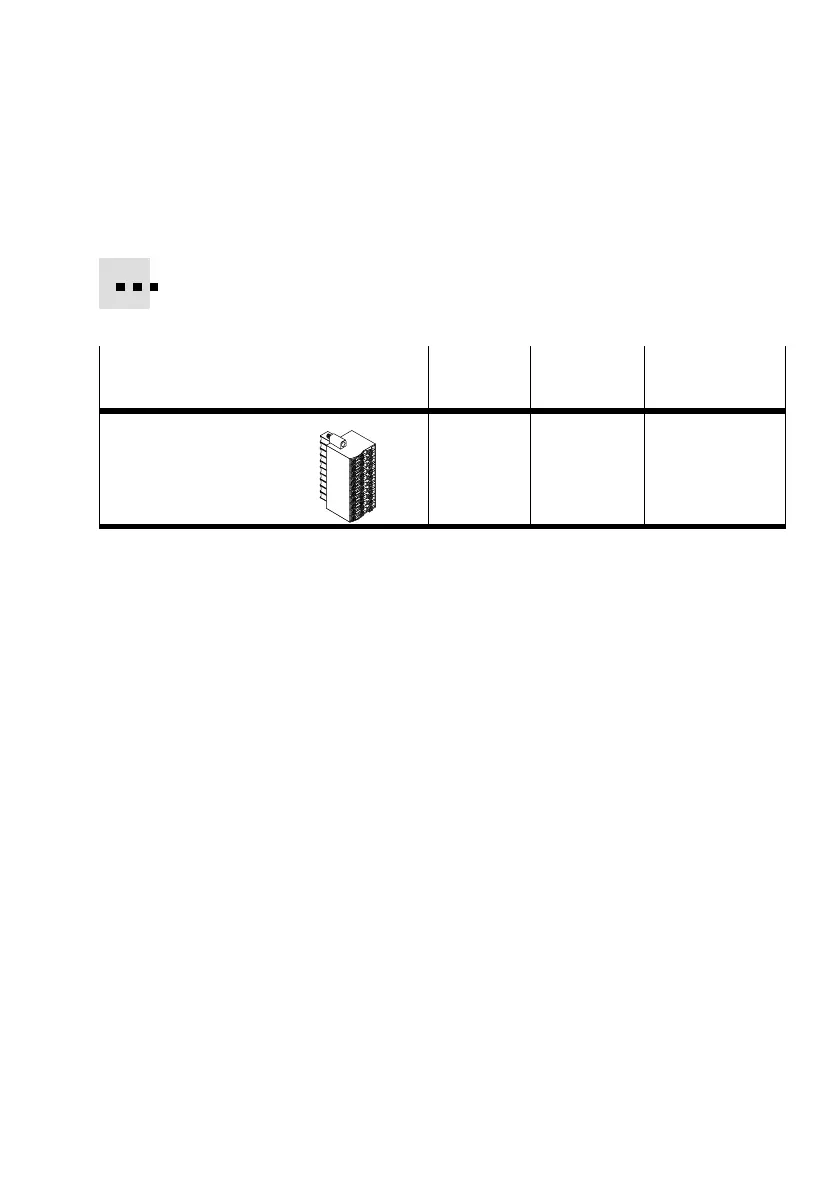

Sockets type PS1−SAC31−30POL+LED
Number Connection
cross section
Recommended
for connection
Tension spring sockets,
3−row + LED
2 see leaflet
with product
X1, X2
Two rows of the three−row connector socket are intended as
distributor boards for the sensor supply. These rows are each
connected internally (see Fig.A/8).
· Fasten the sockets with the screws provided. The maxi
mum tightening torque is 0.2 Nm.
