A. Technical appendix
A−30
Festo P.BE−CPEA−CL−EN en 0711a

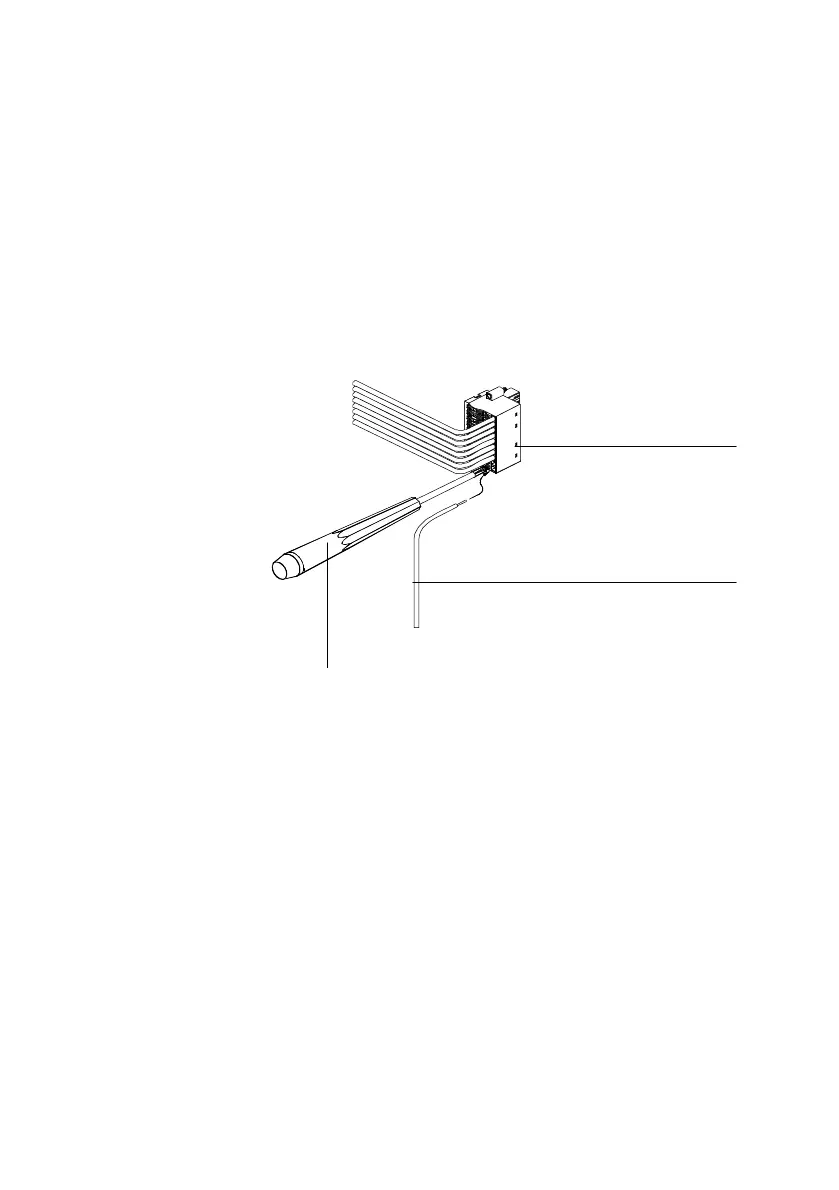

Instructions on wiring the connector sockets
Solid wires and cables with end sleeves can be inserted easily
in the desired tension spring terminal. For inserting flexible
wires, you must use a suitable tool (e.g. screwdriver) to press
down the coloured pushbutton for the relevant tension spring
terminal.
1 Tension spring
socket
2 Cable
3 Screwdriver
1
2
3
Fig.A/4: Wiring the connector socket
