A. Technical appendix
A−20
Festo P.BE−CPEA−CL−EN en 0711a
A.4.2 Circuitry examples for outputs
Examples of circuitry type CP−A04−M12−CL and
CP−A08−M12−EL−Z
Name for ports: E.g.: 1 for CL modules, x1 for EL modules
1
2
3
4
2
3
1
5
4
1 Pin assignment
1: n.c.
2: *)
3: 0V
4: Ox
5: Ground terminal
*)  Po rt x0, x2, x4, x6:
Ox+1, Ox+3 , Ox+5, Ox+7
 Po rt x1, x3, x5, x7 : n.c. (not connected)
2 Example 1
3 Example 2
4 Not acceptable
Ox = Output x
n.c. = not connected

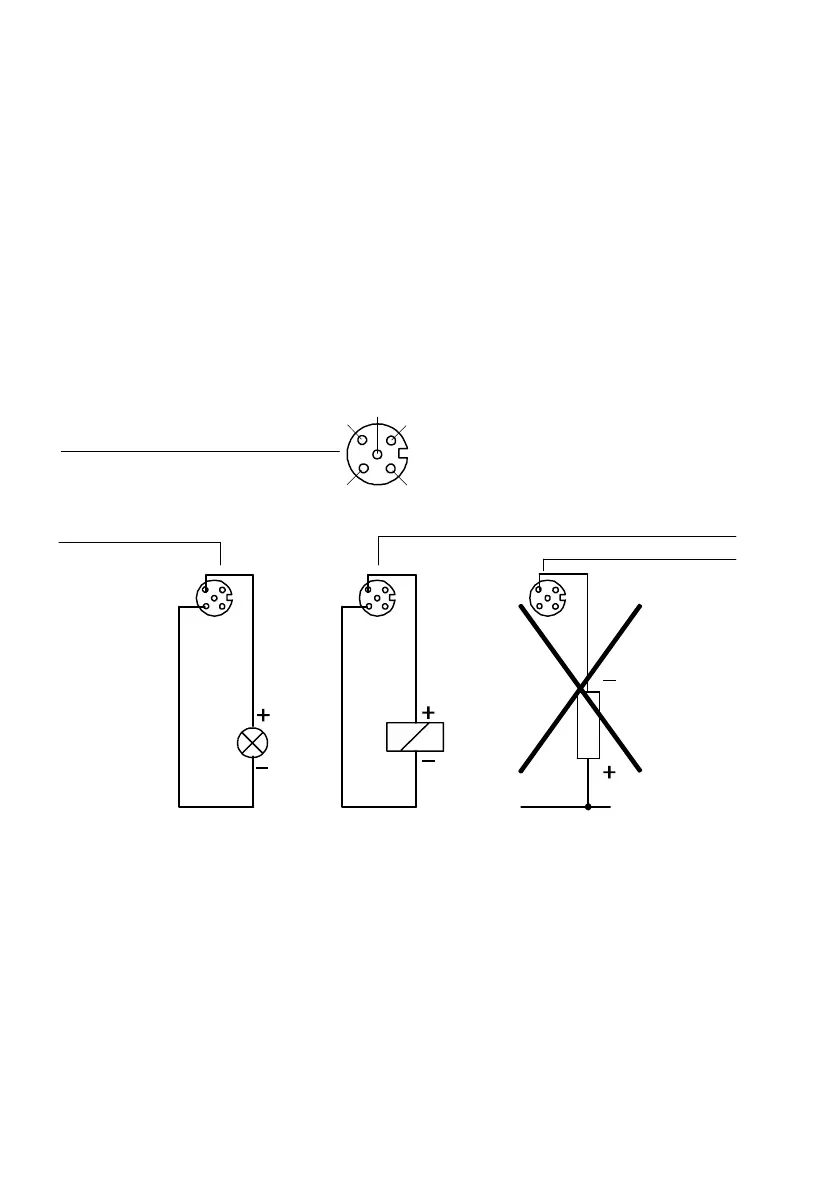

Fig.A/10: Examples of circuitry output module type CP−A04−M12−CL and
CP−A08−M12−EL−Z
