A. Technical appendix
A−21
Festo P.BE−CPEA−CL−E N en 0711a
Circuitry example type CP−A04−M12−CL
1
Pin assignment
Port 0 (2):
1: n.c.
2: Ox+1 (Ox+3)
3: 0V
4: Ox+0 (Ox+2)
5: Ground terminal
Ports 1, 3: not used
2 Magnet valve
Ox = Output x
1
2
82/84
12/14
53
1
42
12
14
2
3
1
5
4
1
4
2
3

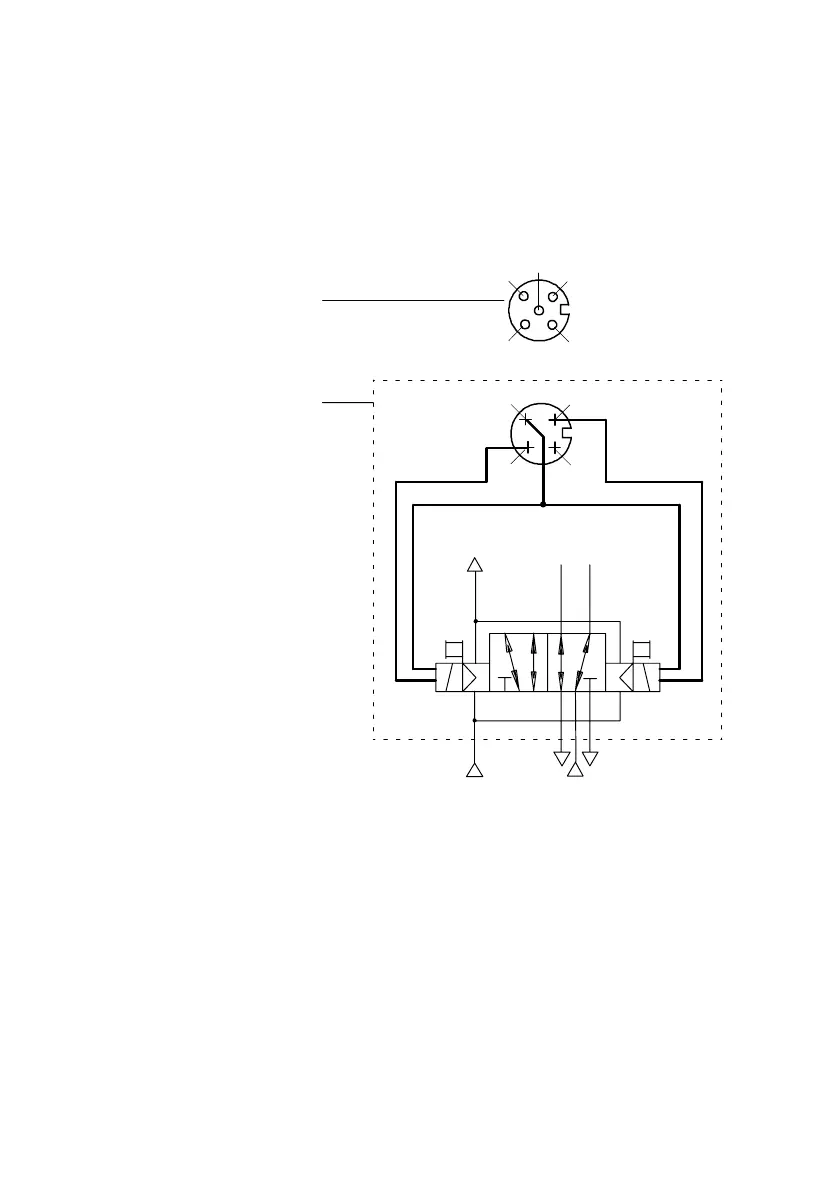

Fig.A/11: Circuitry example type CP−A04−M12−CL with magnet valve, e.g.
type JMEBH−5/2−D−...−ZSR−C
