A.4 Examples of circuitry
A.4.1 Circuitry examples for inputs
Example of circuitry type CP−E32−M8−EL
1
Pin assignment
1: 24V
2: Ix +1
3: 0V
4: Ix
2 Dual distributor
(T−piece)
3 Sensor 2 (Ix+1)
4 Sensor 1 (Ix)
Ix = Input x
1
2
34
1
2
3
4

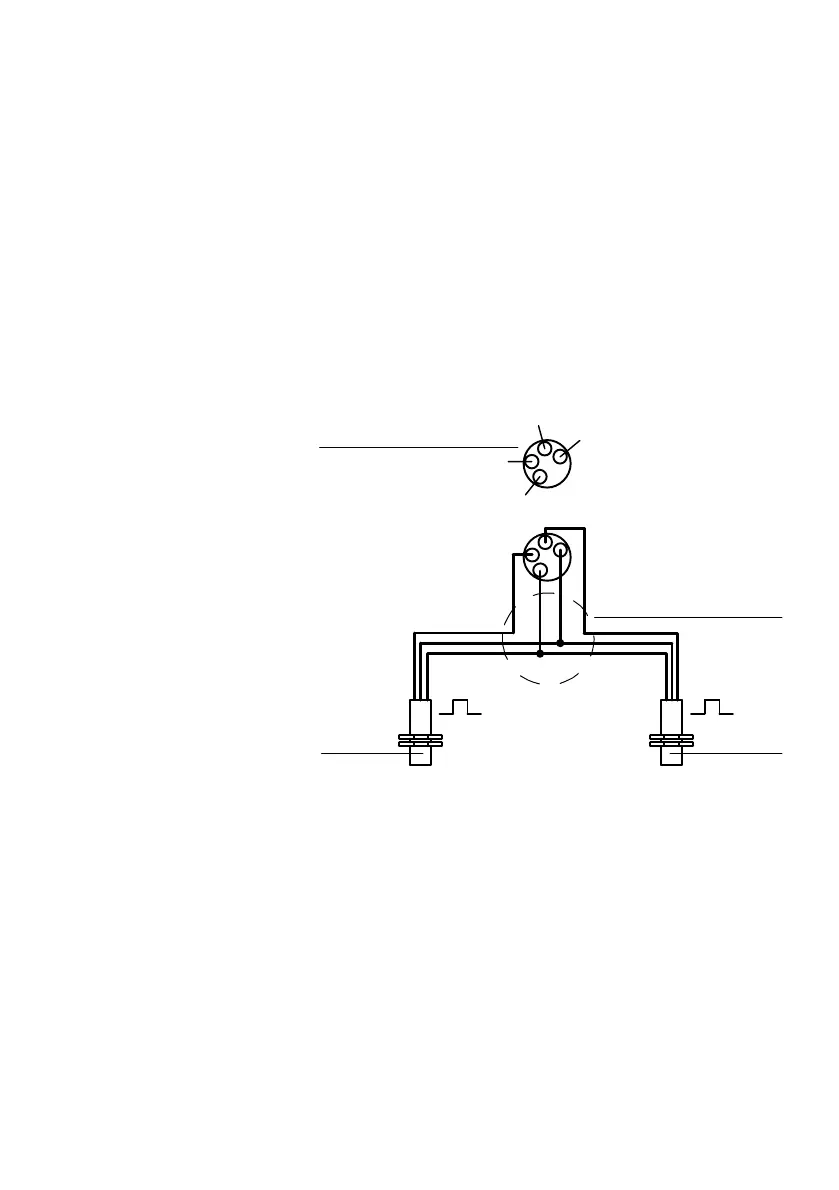

Fig.A/5: Example of circuitry type CP−E32−M8−EL
