A. Technical appendix
A−16
Festo P.BE−CPEA−CL−EN en 0711a

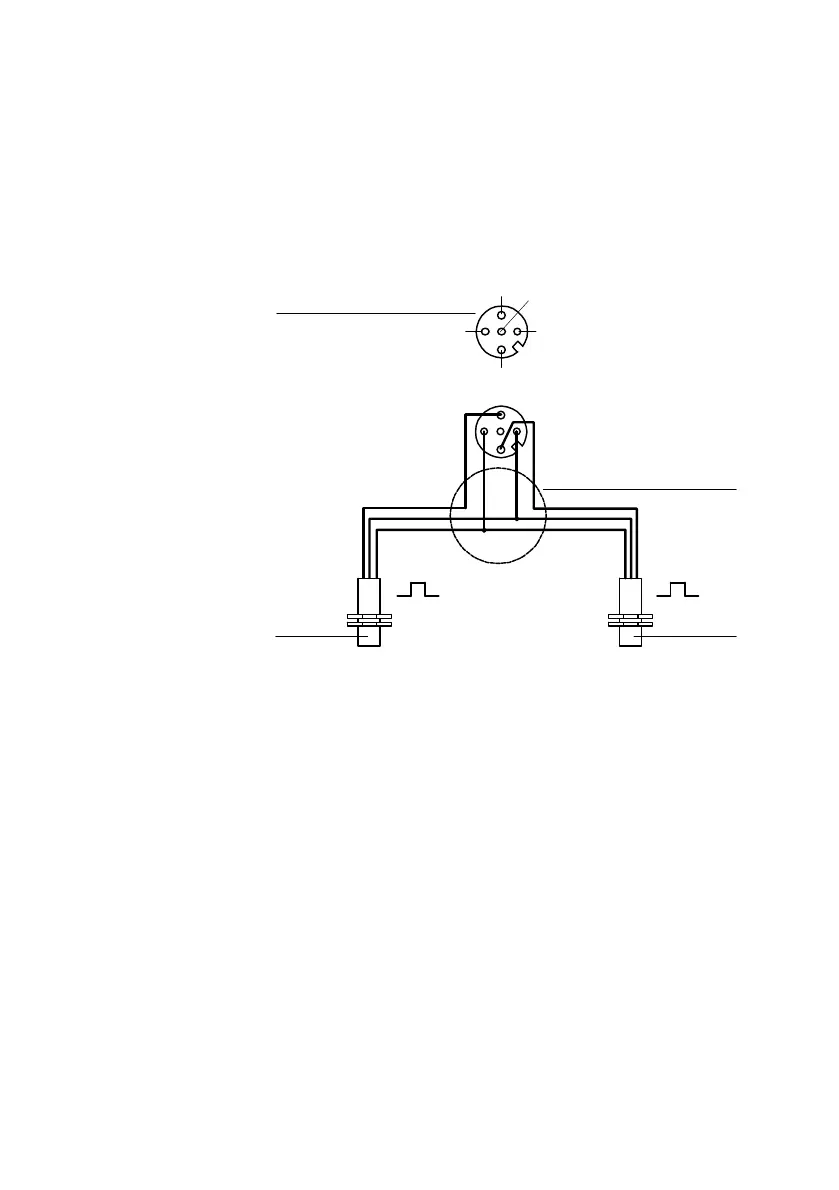

Example of circuitry type CP−E08−M12−CL and
CP−E16−M12−EL
1
Pin assignment
1: 24V
2: Ix +1
3: 0V
4: Ix
5: Ground terminal
2 Dual distributor
(T−piece)
3 Sensor 2 (Ix+1)
4 Sensor 1 (Ix)
Ix = Input x
2
3
4
5
1
1
2
34
Fig.A/6: Example of circuitry type CP−E08−M12−CL and CP−E16−M12−EL
