A. Technical appendix
A−17
Festo P.BE−CPEA−CL−E N en 0711a
Examples of circuitry type CP−E08−M8−CL and
CP−E16−M8−EL
1
Pin assignment
1: 24V
3: 0V
4: Ix
2 Three−wire se nsor
(positive−switching)
3 Two−wire sensor
(positive−switching)
4 Contact
Ix = Input x
1
2
4
3
4
1
3

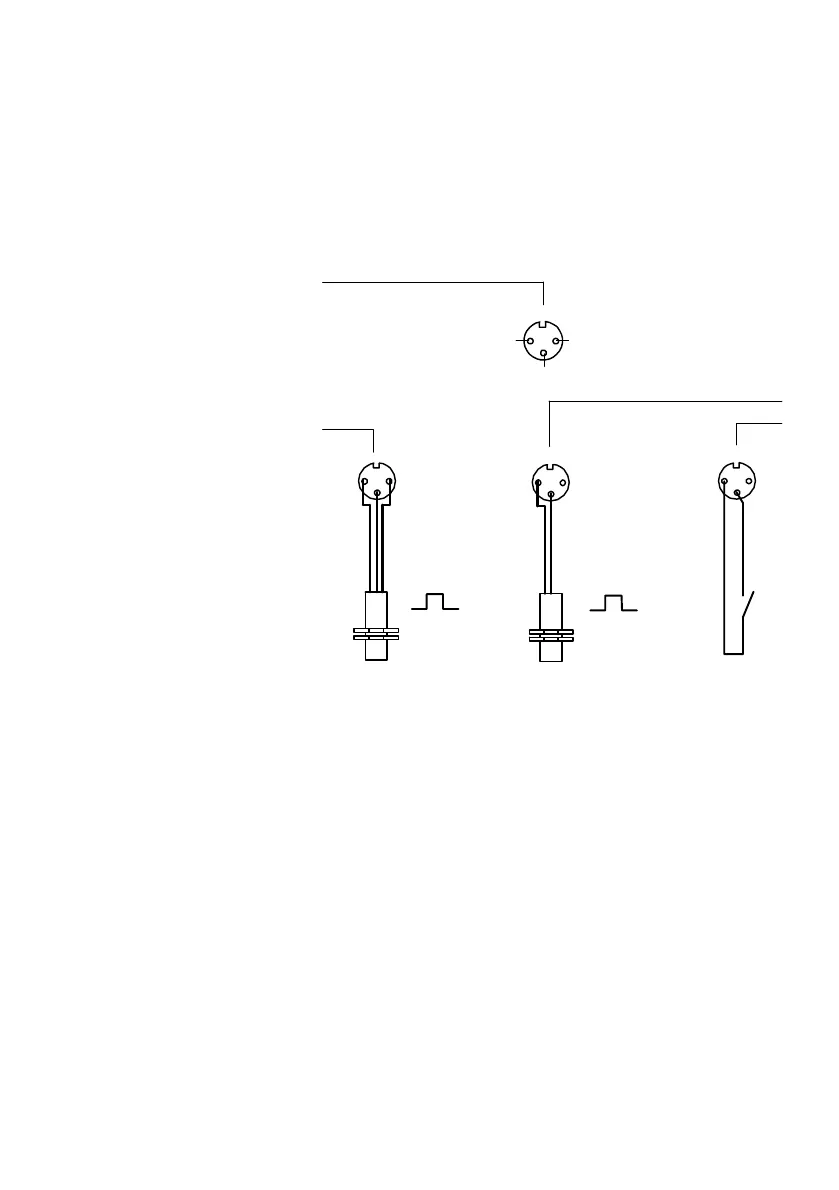

Fig.A/7: Example of circuitry type CP−E08−M8−CL and CP−E16−M8−EL
