2. Input modules types CP−E08−M...−CL and CP−E16−KL−CL
2−7
Festo P.BE−CPEA−CL−E N en 0711a
2.2 Mounting
The input modules are intended for fitting onto a wall or onto
profiles. Take into account the following dimensions and
weights:
Type
Dimensions Weight
CP−E08−M12−CL approx. 151 x 30 x 34.5 mm approx. 165 g
CP−E08−M8−CL approx. 151 x 30 x 34.5 mm approx. 190 g
CP−E16−KL−CL approx. 151 x 30 x 34.5 mm approx. 145 g
Tab.2/2: Dimensions of the input module
Fitting onto a wall The following diagram shows the dimensions for the holes of
screw size M4. Always fasten each module with 2 screws and
a locking disc.
Tightening torque of the fastening screws: 2 ± 0.5 Nm.
1 Input module
type CP−E08−M12−CL
2 Input module
type CP−E08−M8−CL
3 Input module
type CP−E16−KL−CL
approx.151mm
approx.30mm
75+0.5mm
In
Out
3 7 10
2 4
6
5
1
2
3
In
Out
PS
1 3
5 7
0 2 4
6
approx.30mm
141+0.5mm
In
Out
X1
PS
X2

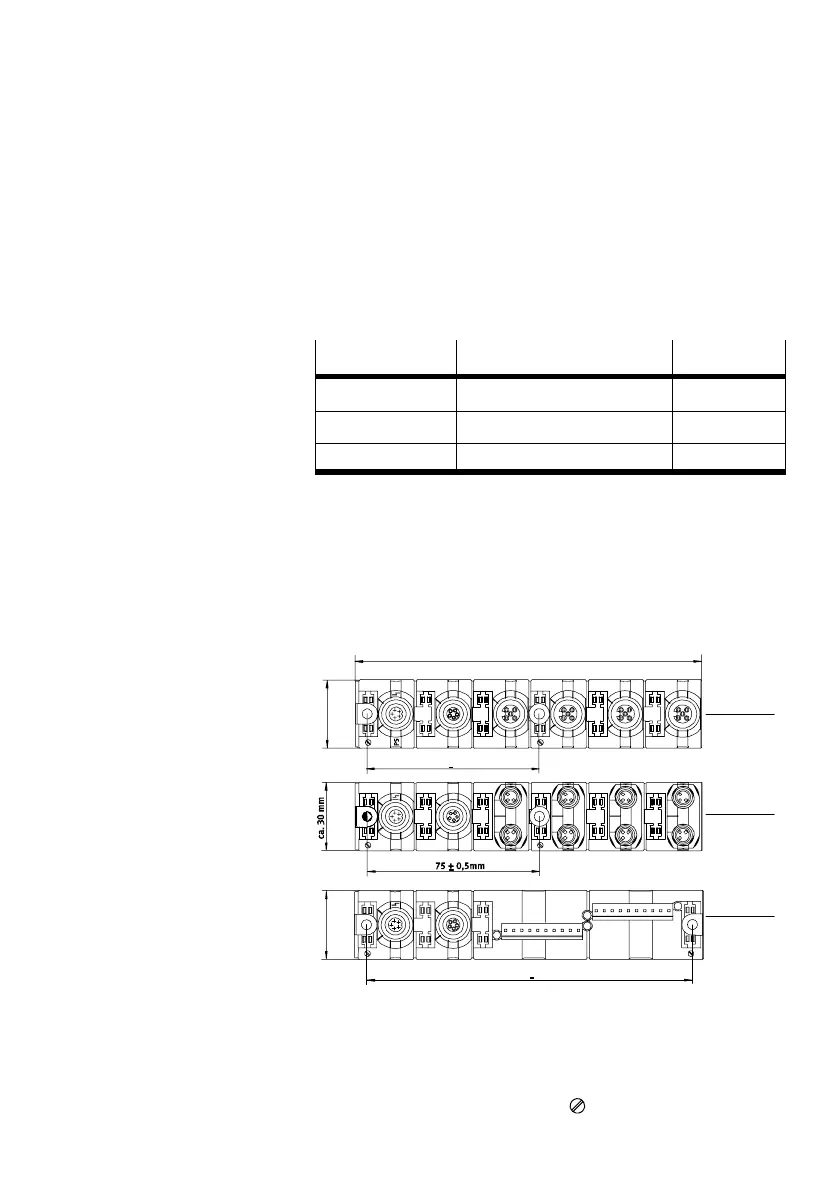

Fig.2/4: Fitting dimensions CP−E...−CL
Tip:
The position of the fastening screws on clipped−in drawing
plates is marked with the symbol
.
