5.2 Mounting
The output module is intended for fitting onto a wall or onto
profiles. Take into account the following dimensions and
weights:
Type
Dimensions Weight
CP−A08−M12−EL−Z approx. 143 x 104 x 30 mm approx. 260 g
Tab.5/2: Dimensions of output module
Fitting onto a wall The following diagram shows the dimensions for the holes.
Always fasten each module with 4 screws and a locking disc.
Tightening torque of the fastening screws: 1.2 ± 0.2 Nm.
approx. 142 mm
approx. 102 mm
approx. 104 mm

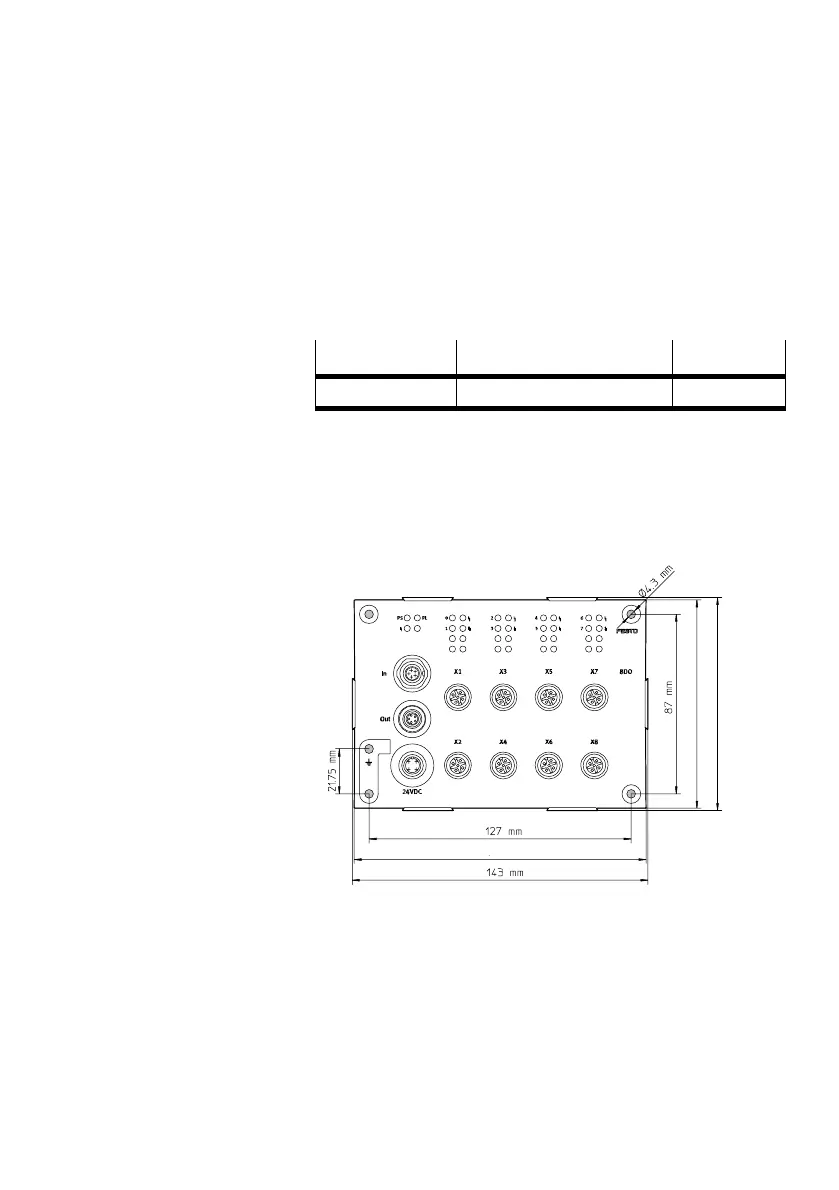

Fig.5/2: Installation dimensions of output module
CP−A08−M12−EL−Z
