5. Output module type CP−A08−M12−EL−Z
5−6
Festo P.BE−CPEA−CL−EN en 0711a
H−rail mounting The module is suspended from above in the H−rail (see arrow
A in Fig.5/3).
The module is earthed via the clamping component (see
arrow B in Fig.5/3). The clamping component and the mount
ing screw are included with the module.

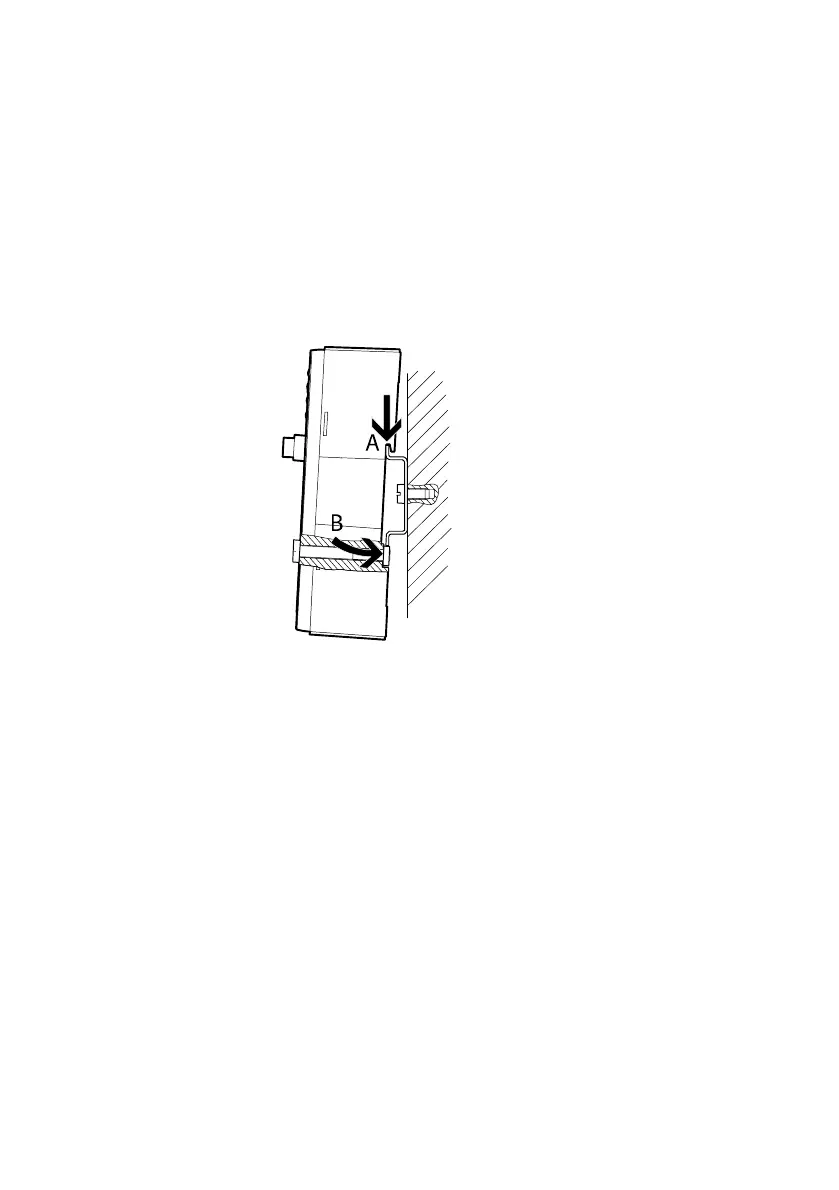

Fig.5/3: H−rail mounting of output modules
CP−A08−M12−EL−Z
