2. Input modules types CP−E08−M...−CL and CP−E16−KL−CL
2−5
Festo P.BE−CPEA−CL−E N en 0711a

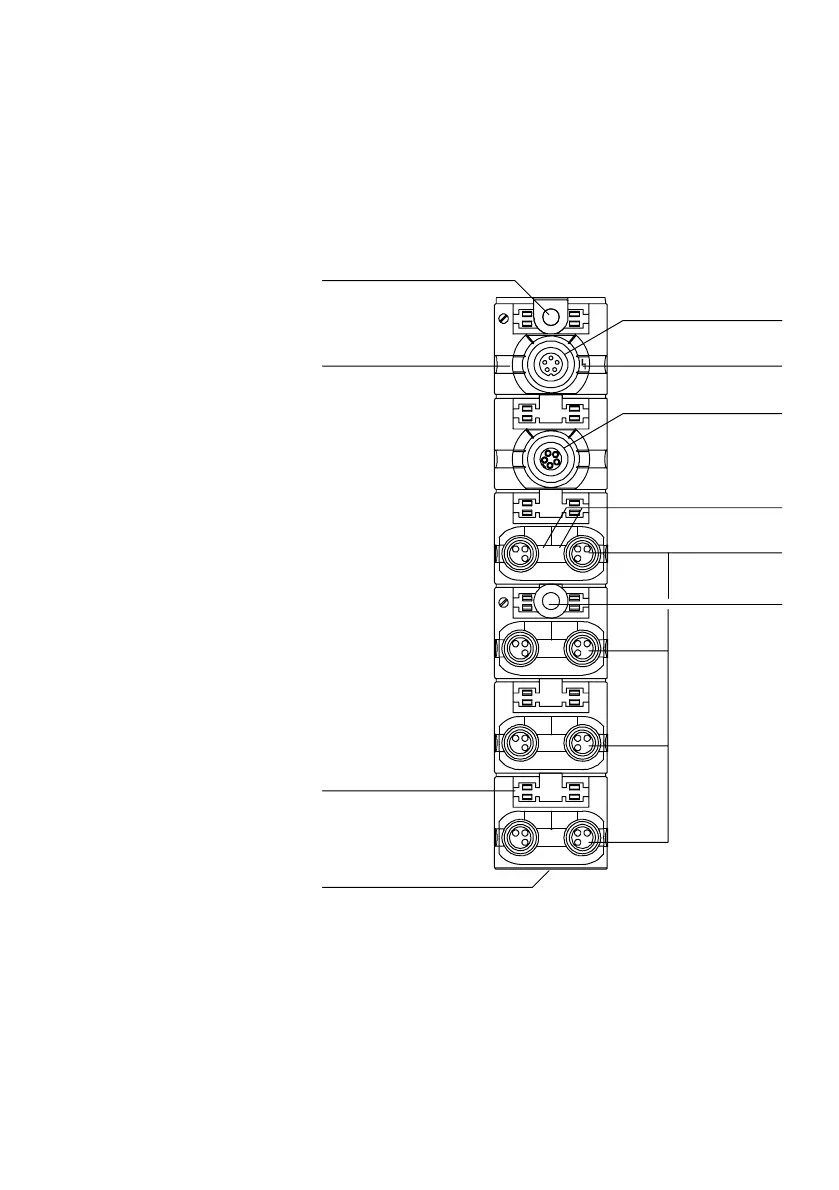

The following diagram shows the display and connecting
elements of input module CP−E08−M8−CL.
1 CP connection
incoming
2 Continuing
CP connection
3 Status LED short
circuit/overload/
undervoltage in
sensor supply (red)
4 Status LEDs for
inputs (status
display, green)
5 Status LED CP
communication
(PS, green)
6 Mounting hole
7 Name plate
8 Groove for identifica
tion signs (6x) (type
IBS 8x20)
9 Sensor connections
(1 input per socket)
aJ Fastening hole with
earth connection
In
Out
PS
1
3
5
7
0
2
4
6
1
2
3
4
5
6
7
8
9
aJ
Fig.2/2: Display and connecting elements type CP−E08−M8−CL
