1. Installation
1-13
Festo P.BE-CPX-PNIO-EN en 1407c English
In the remote controller operating mode:
setting the data field size with DIL switch
2
The function of the DIL switch
2
depends on the setting of
the DIL switch
1
or the set operating mode of the CPX ter-
minal ( Tab. 1/1) :
The required data field size is set with DIL switch
2
in the
remote controller operating mode ( Tab. 1/4).
Note
Observe that the data field size set with the DIL switch 2
( Tab.1/4)mustbethesamesizeorlargerthanthedata
field size, which you set in your control system.
Further explanations about the remote controller operating
modecanbefoundinsection2.10andB.1.2.

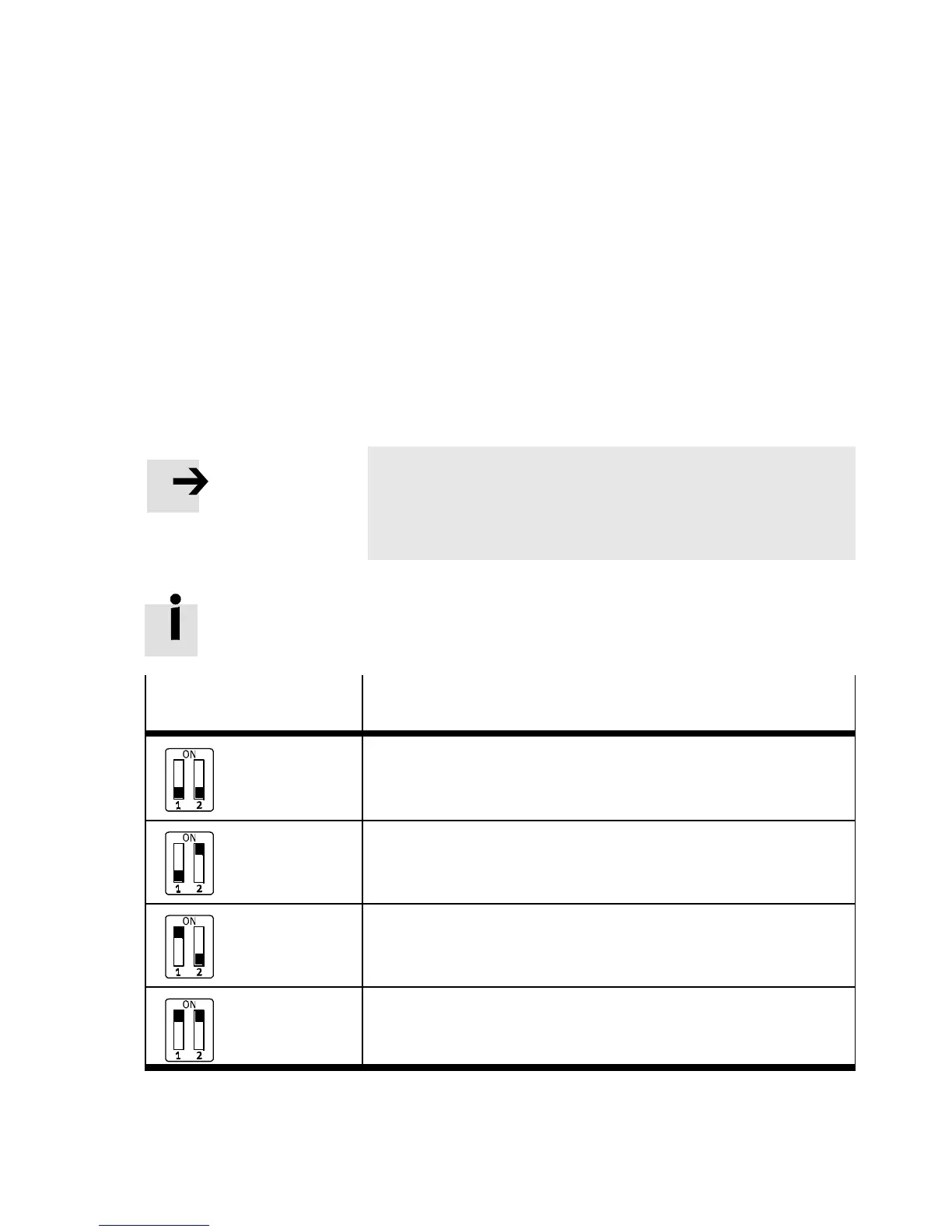

DIL switch
2
Set data fi e ld size
(in the remote controller operating mode)
DI L 2.1: OFF
DI L 2.2: OFF
(factory setting)
Maximum data field size:
8bytesI/8bytesO
DI L 2.1: OFF
DI L 2.2: ON
Maximum data field size:
16 bytes I/16 bytes O
DI L 2.1: ON
DI L 2.2: OFF
Reserved for future extensions
DI L 2.1: ON
DI L 2.2: ON
Reserved for future extensions
Tab. 1/4: Setting the data field size with DIL switch
2
