2. Commissioning
2-40
Festo P.BE-CPX-PNIO-E N en 1407c English
1

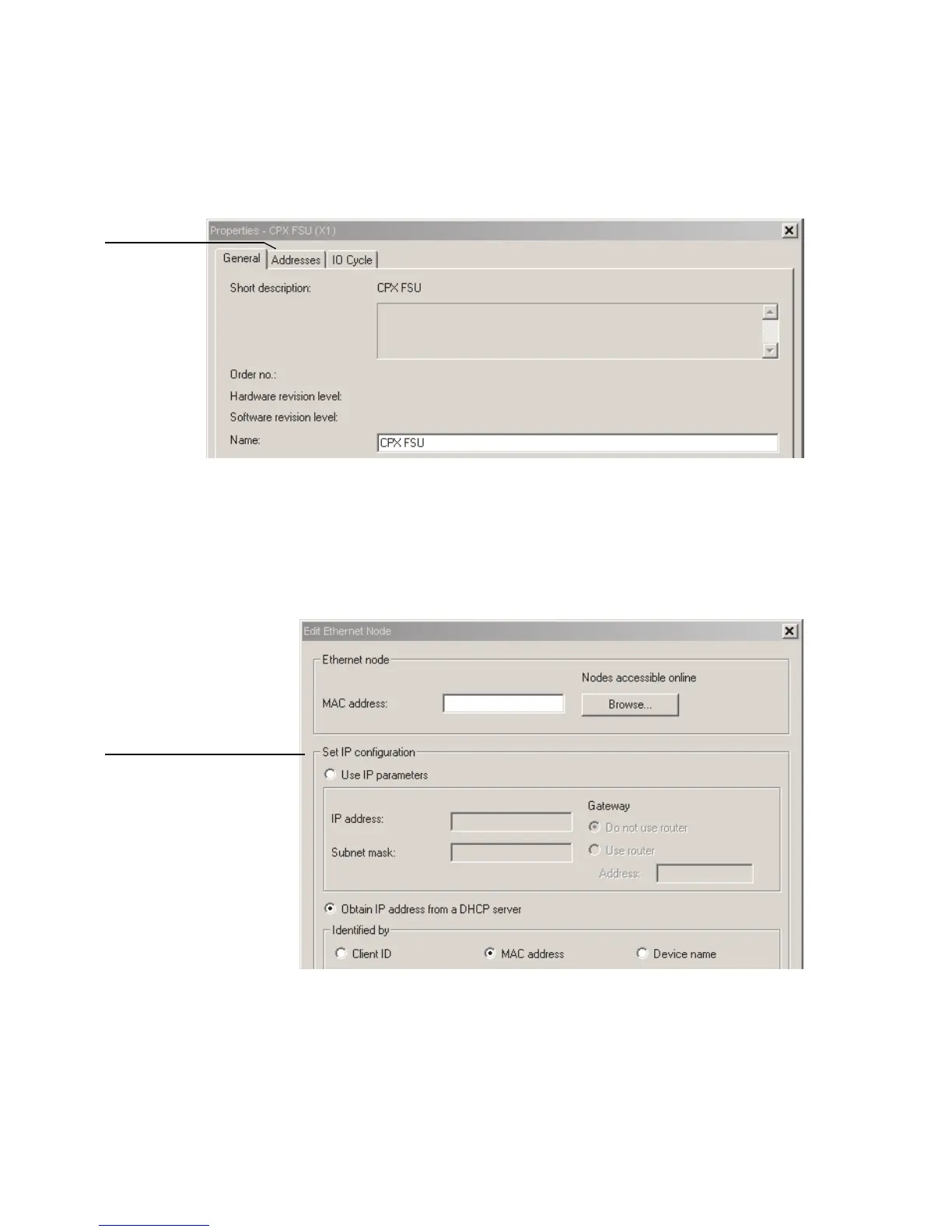

Fig. 2/8: CPX terminal characteristi cs – addressing (part 2)
22. Manual addressing (if required):
Enter the I P address of the bus node ( 1 in Fig. 2/9).
1
Fig. 2/9: CPX terminal characteristi cs – addressing (part 4)
23. Confirm your inputs by clicking on “OK” (twice if neces-
sary).
