5 Key- Network
At default, every FC500 Control panel is a Master Con
-
trol Panel disabled in the Network.
+
If a control panel is already configured as "Master",
verify, via PC, if it is enabled in the Network.
If a control panel is already configured as "Slave",
in the new installation, insert the Slave address
from the user interface of the Contro panel itself.
In the Network ONLY one Master control panel
must be present.
When all the Control panels and the Repeaters are con
-
nected in the Network, the system can be supplied.
Now it is necessary to configure the Network, so work
through the following steps:

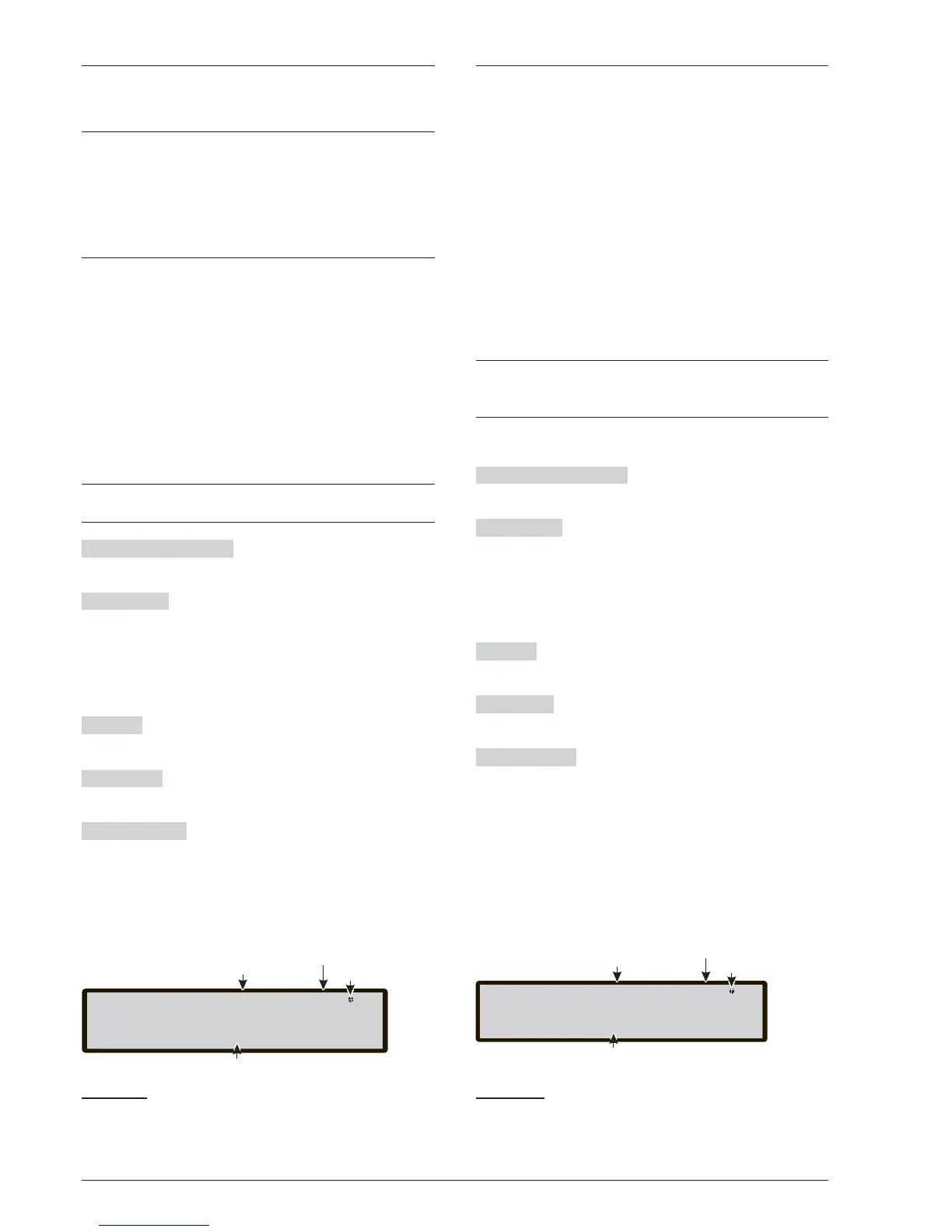

1- use the 5 Key to select Network, from Programming
page (Figure 45) in the User interface of the control pa
-
nel to be configured;
2- the Display of Figure 45 will be shown;
3- use the cursor keys to select the type of control panel
assigned as "Slave" (address);
4- use the Enter key to confirm.
+
Every "Slave" control panel inserted in the Network
must have a different address.
Alphanumeric keypad No function is related to
Alphanumeric keypad;
Cursor Keys
No function is related to UP Key;
No function is related to Down Key;
Use the Righ key to move on the Right to select the
type of the control panel.
Use the Left key to move on the Left to select the type of
the control panel.
ESC Key
Use ESC key to cancel the operation and to
step back to previous page.
ENTER Key Use the ENTER Key to confirm the ad
-
dress.
Function KeysNo function is related to F1 key;
No function is related to F2 key;
No function is related to F3 key;
No function is related to F4 Key.
FC500MFI programming Procedure
To program the module FC500MFI, do the following
from Programming menu (Network), press 5 key.
In the programming page "Network" press the ENTER
key to confirm the type of panel (FC500MFI),
Select and enable one or more FC500MFI modules
(max 4);
select a module by the arrow ï or ð (the symbol ^ un
-
der the name show the selected module),
enable a module by the arrow ñ or disable it by the ar
-
row ò:
the module name, if enabled, will appear in uppercase
(see figure n.46).
Press the Enter key to confirm.
+
For an explanation of the features and program
-
ming (addresses), see the dedicated manual of the
FC500MFI module.
in this phase:
Alphanumeric keypad No function is related to the
Alphanumeric keypad.
Cursor Keys The Up key enable the selected module
(es. ON1-uppercase);
The Down key disable the selected module (es. on1-lo-
wercase);
Use the Righ key to select the module;
Use the Left key to select the module;
ESC Key
Use ESC key to cancel the operation and to
step back to previous page.
ENTER key The ENTER key confirm the program
-
ming.
Function Keys No function is related to F1, F2, F3 e
F4.
PROGRAMMING FROM THE PANEL 49
