2.5 Device versions
2.5.1 Process connection
Cutting ring screw connection
1/8'' screw connection
O-ring
O-ring
CK screw connection
CK screw connection
Pneumatic
plug-in connection
FF90 temperature
and humidity sensor
lock-
screw
Humidity and temperature
measuring device
Humidity and temperature measuring device
with pressure measurement

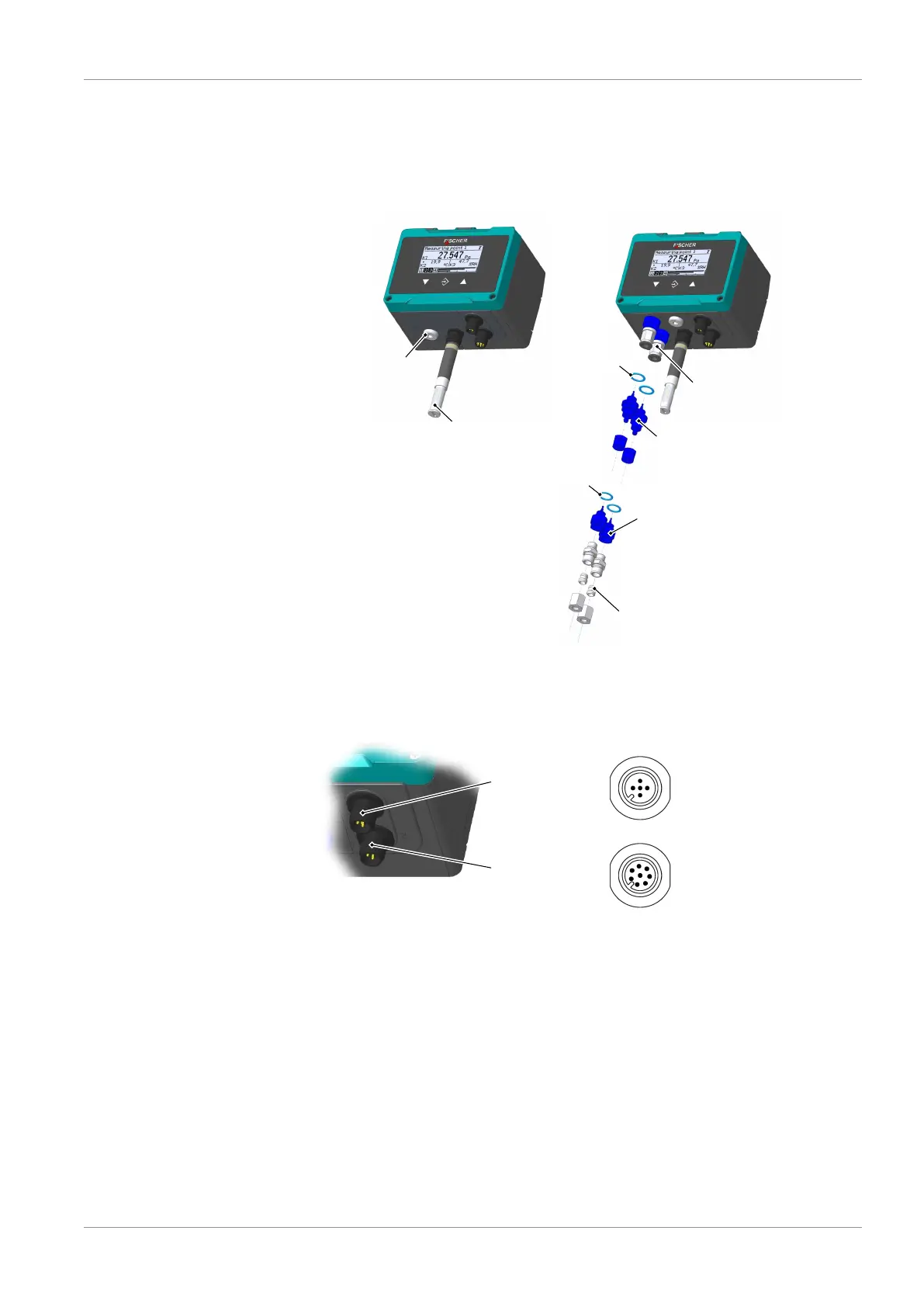

Fig.2: Process connections
2.5.2 Electrical connection
Connector 1
Connector 2
Output signal
auxiliary energy
Switch outputs
Fig.3: Electric connections
