7.4.2 Temperature
The limit values apply for plastic and all sensors mounted at an offset.
To ensure that the specified measurement error is upheld for stainless steel
sensors mounted directly on the device, an air flow of at least 0.1 m/s must be
guaranteed.
ΔT [°C]
Max. measurement error
Typ. measurement error
Temperature [°C]

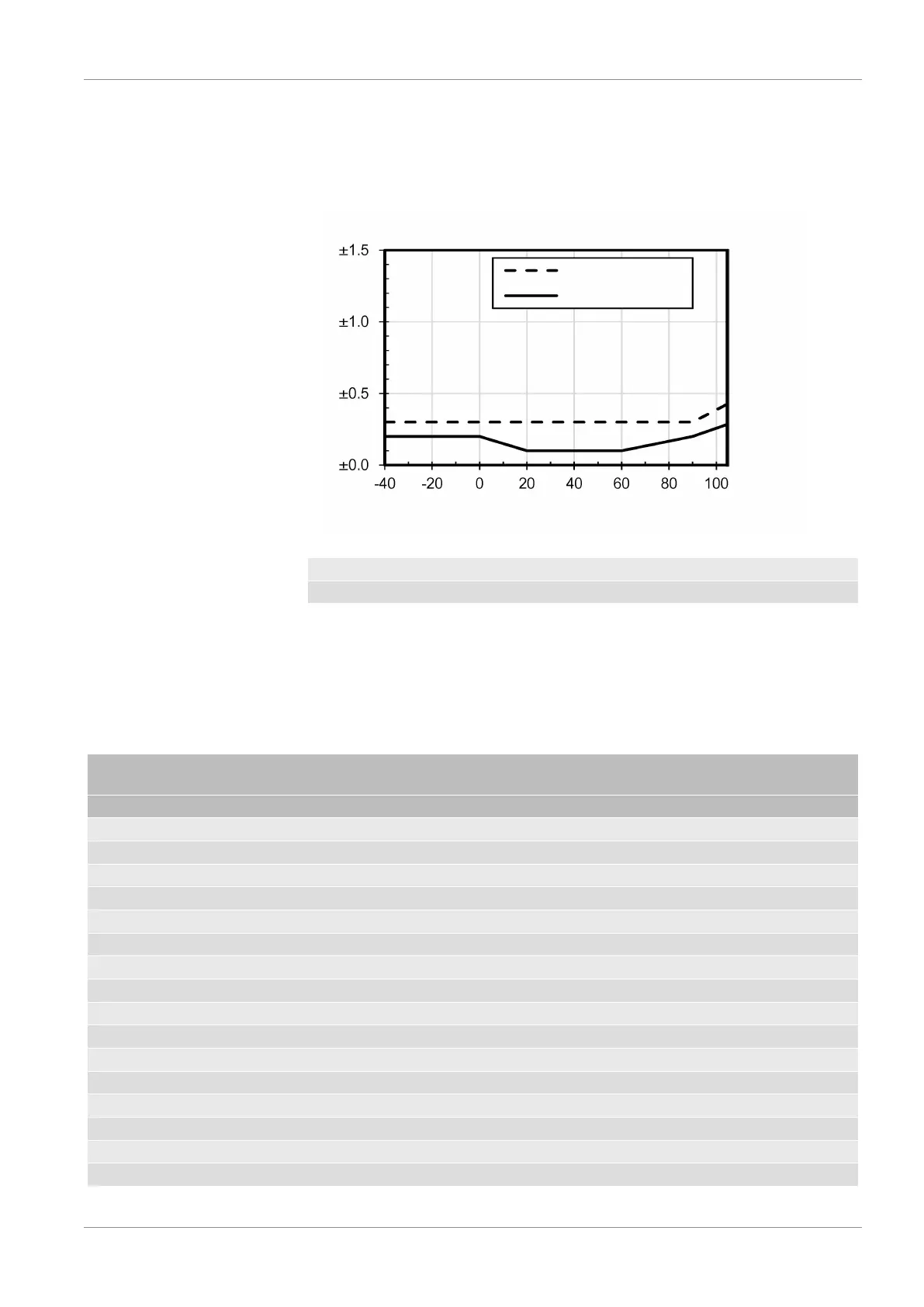

Fig.141: Temperature measurement error in relation to temperature
Typical measurement error 0.1 to 0.3°C
Maximum measurement error 0.3 to 0.4°C
7.4.3 Differential pressure
• The specifications for the measurement error include linearity and hyster-
esis.
• All specifications relate to the basic measuring range (see the type plate)
and a compensation range of -20 to +70°C.
Sensor type A
Measuring range Measurement error
[%]
Tc-zero
[%/10K]
Tc span
[%/10K]
Typ. Max. Typ. Max. Typ. Max.
-20 to +80 Pa 0.5 1.0 0.3 0.6 0.2 0.4
0 to 25 Pa 1.5 2.5 0.5 1.0 0.3 0.6
0 to 40 Pa 1.0 2.0 0.5 1.0 0.2 0.4
0 to 60 Pa 0.75 1.5 0.3 0.6 0.2 0.4
0 to 1 mbar 0 to 100 Pa 0.5 1.0 0.3 0.6 0.2 0.4
0 to 1.6 mbar 0 to 160 Pa 0.5 1.0 0.3 0.6 0.2 0.4
0 to 2.5 mbar 0 to 250 Pa 0.5 1.0 0.3 0.6 0.2 0.4
0 to 4 mbar 0 to 400 Pa 0.5 1.0 0.15 0.3 0.05 0.1
0 to 6 mbar 0 to 600 Pa 0.5 0.75 0.15 0.25 0.05 0.1
0 to 10 mbar 0 to 1 kPa 0.25 0.5 0.1 0.2 0.05 0.1
-25 to +25 Pa 1.0 2.0 0.4 0.8 0.2 0.4
-40 to +40 Pa 0.75 1.5 0.3 0.6 0.2 0.4
-60 to +60 Pa 0.5 1.0 0.3 0.6 0.2 0.4
-1 to +1 mbar -100 to +100 Pa 0.5 1.0 0.3 0.6 0.2 0.4
-1.6 to +1.6 mbar -160 to +160 Pa 0.5 1.0 0.3 0.6 0.2 0.4
-2.5 to +2.5 mbar -250 to +250 Pa 0.5 1.0 0.15 0.3 0.05 0.1
