5.1.5 Path details
The path information appears in the first line of the display. For space reasons,
the paths cannot be shown in full. The menu level is indicated by the number of
backslash symbols ('\'). Where this is not possible, only the menu name is
shown.
Path: \Configuration\Channel 2\Measurement C2\Measur.range C2 unit
Level 0 Level 1 Level 2 Level 3
Meas.range C2 unit
°C
°F
Back
R
R
E
U
1 2 3 4

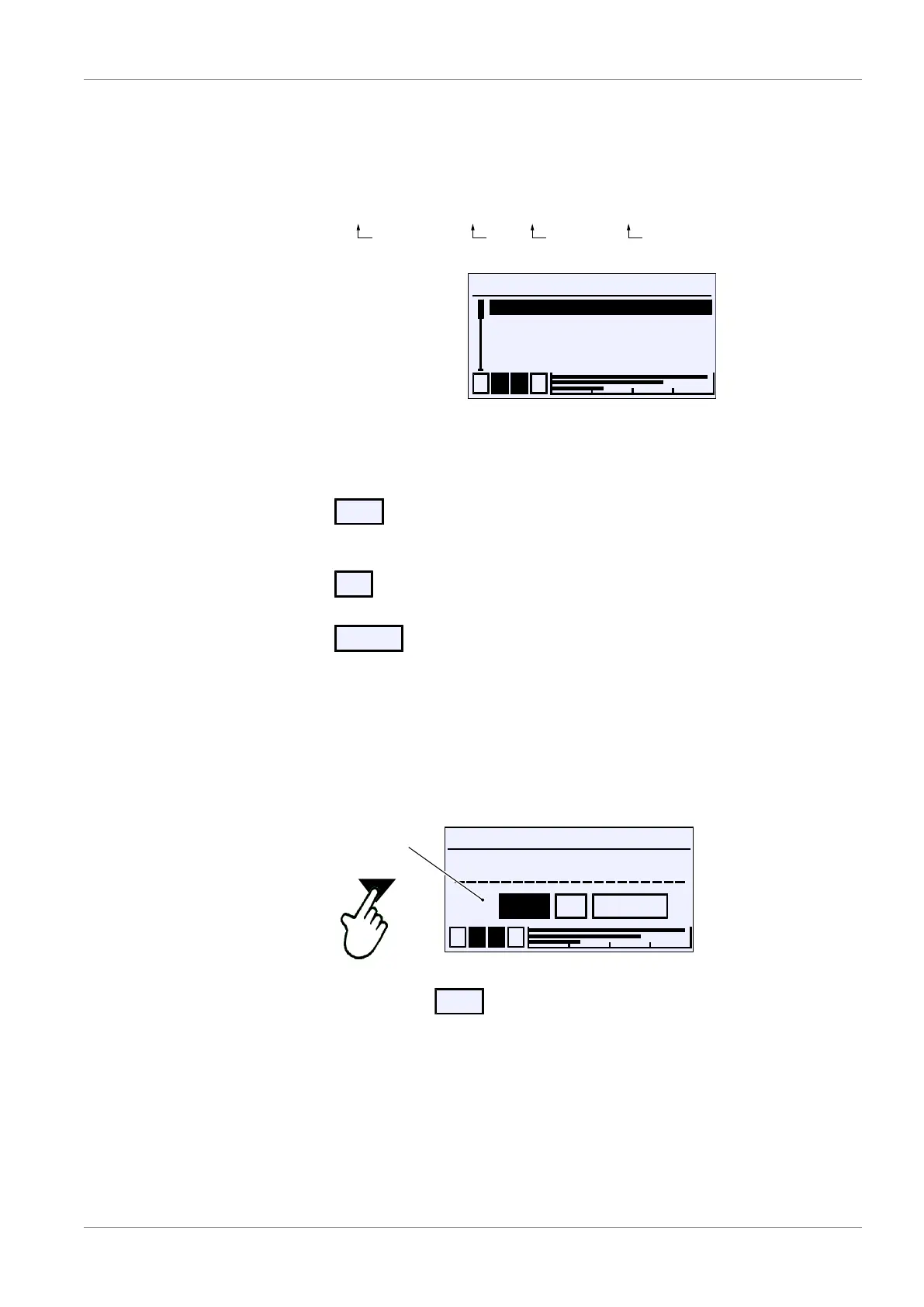

Fig.53: Path
5.1.6 Input
The following softkeys are used whenever text or values are entered:
•
Edit
This softkey is used to switch into the editing window for entering text or val-
ues.
•
OK.
The input is completed with this softkey. The entered text or value is saved.
•
Cancel
The input is cancelled with this softkey. The originally saved text or value is
retained.
A softkey is pressed by first being selected with the buttons ÿ and þ . The
softkey is shown inverted. It is realised with the button û .
5.1.6.1 Text input
For example: Path: \Quick access\Designation
\...\Designation
Measuring point 1
OK CancelEdit
U
1 2 3 4
ÿ
Softkey
Fig.54: Action selection
Select the softkey
Edit
with the button ÿ or þ . The selection is con-
firmed with the button û . The following window opens for editing.
