FISCHER Mess- und Regeltechnik GmbH Operation | 5
BA_EN_FT90 55/108
5.5.1.1 Mode C1
NOTICE!This menu is available only for devices with a differential pres-
sure channel.
Path: \Configuration\Channel 1\Mode C1
Level: 3
\...\...\Mode C1
1 2 3 4
Linear
Flow rate
Table
Volume flow
S
R
U
R
R

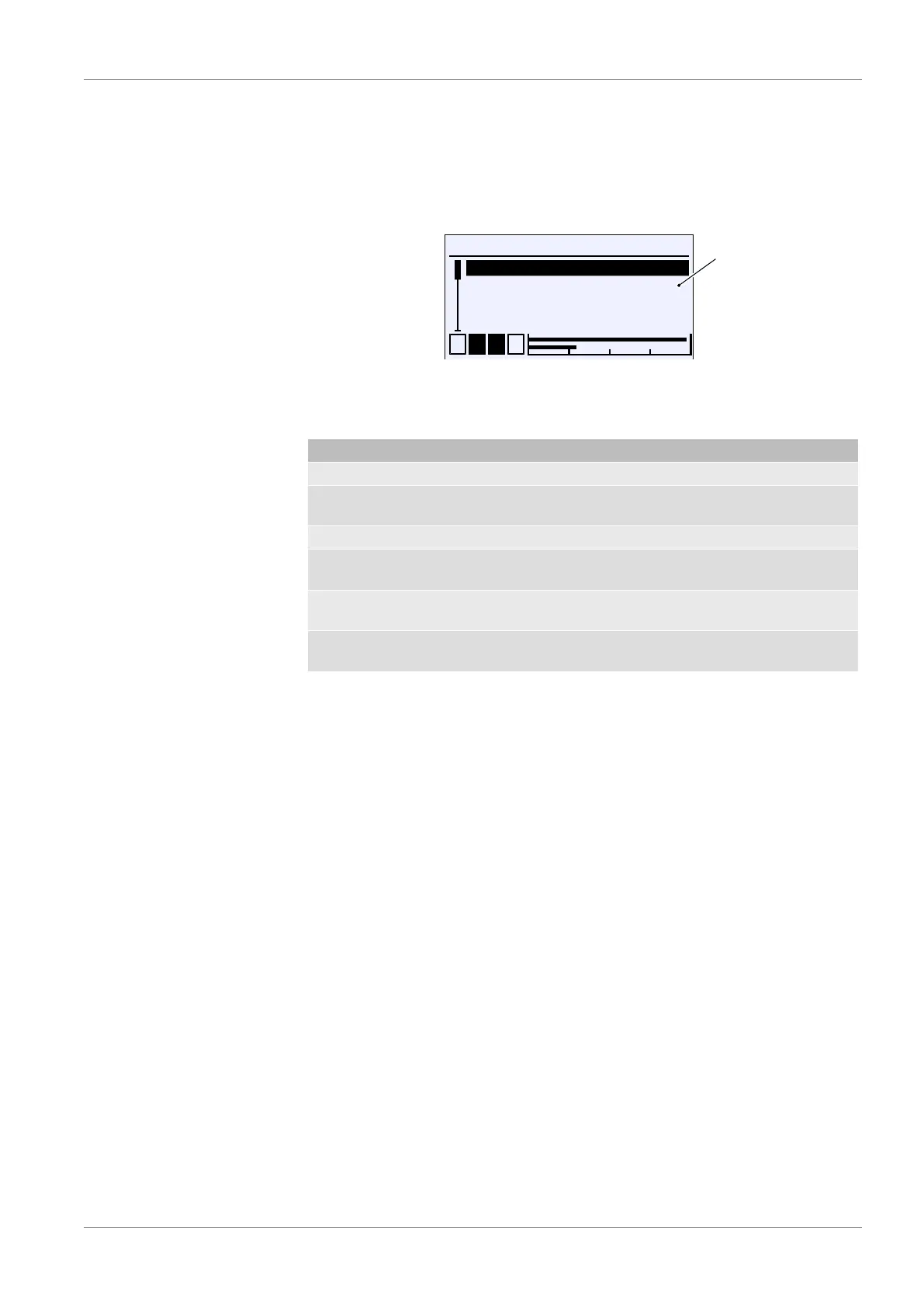

Fig.75: Mode C1
In this menu, different operating modes can be selected for the 1st measuring
channel (C1). The currently selected mode is shown by the option field.
Parameter value Description
Linear Linear input characteristic
Flow rate Flow rate measurements on a measur-
ing orifice
Table Fill level measurements on tanks
Volume flow Volume flow measurements in ventila-
tion systems
Linear function Mathematic function
f(x) = mx + b
Back E This is the menu exit point. It takes you
back to the 'Channel 3' menu.
Each of these operating modes requires a different configuration of the charac-
teristic. Consequently, the calling menu after the exit has the menu expansion
'Characteristic C1' , which enables the configuration of the character-
istic for the selected mode.
The 'Linear' operating mode is an exception. There is no menu expansion be-
cause configuration takes place only in the menu 'Measurement C1' .
See also
2 Characteristic curve C1 (menu expansion) [}63]
